Same model may have multiple batches, images only for reference.

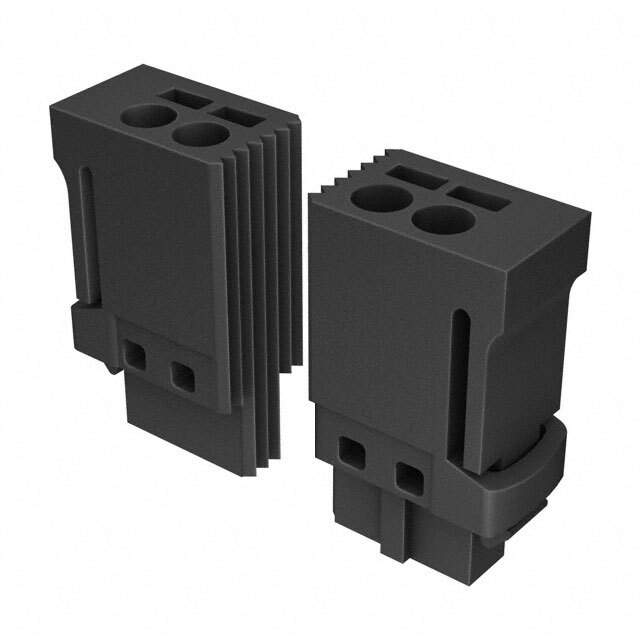

XW4H-11A1 Real Image
Same model may have multiple batches, images only for reference.

XW4H-11A1

Part No XW4H-11A1
Manufacturer Omron
Catalog Terminal Blocks
Description TERM BLOCK PLUG 11POS STR 2.54MM
Datasheet
XW4H-11A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Type Plug, Female Sockets
Number of Positions 11
Positions Per Level 11
Number of Levels 1
Pitch 0.100" (2.54mm)
Plug Wire Entry 180°
Termination Style Screwless - Leg Spring, Push-In Spring
Mounting Free Hanging (In-Line)
Nominal current IN - UL 6A
Voltage - UL 160V
Wire Gauge or Range - AWG 20-26 AWG
Wire Gauge or Range - mm2 0.14 to 0.5mm2
Color Black
Temperature Range - Operating -45°C to 125°C
Contact Mating Finish Tin
Features Latch Lock
Wire Strip Length 6mm
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height 0.193" (4.90mm)
Win Source Part Number 1042027-XW4H-11A1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian XW4H-11A1 CAD Model

Description

The XW4H-11A1 is a plug, female socket IC manufactured by Omron Electronics Inc-EMC Div.

  • Positions per level: 11
  • Level: One level
  • Pitch: 0.100" (2.54mm)
  • Plug wire entry: 180°
  • Termination Style: Screwless - leg spring, push-in spring
  • Voltage - UL: 160V
  • Wire gauge or range - AWG: 20-26 AWG
