XG4H-1631
Same model may have multiple batches, images only for reference.

XG4H-1631

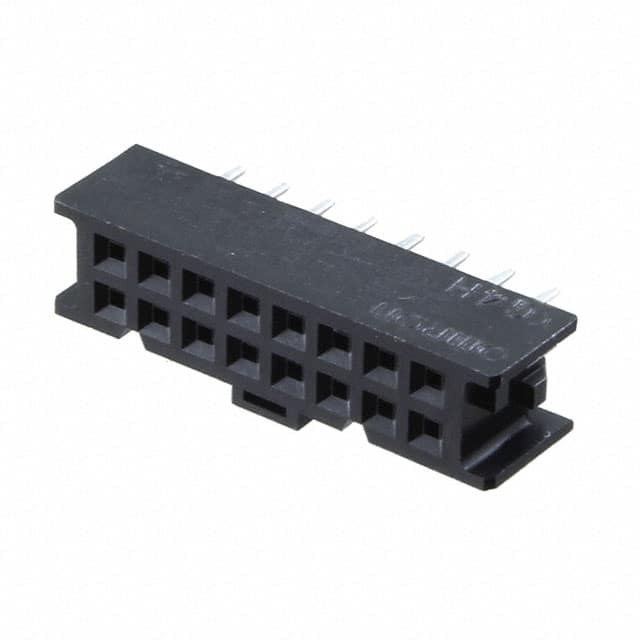

Part No XG4H-1631
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.1 GOLD PCB / 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Omron
Series XG4
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Insulation Color Black
Insulation Height 0.283" (7.19mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 9.7mm, 10.1mm
Features Polarizing Key
Current Rating (Amps) 3A
Voltage Rating 300VAC
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4H
Standard Package 120 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904005-XG4H-1631
Ultra Librarian 3D Model Ultra Librarian XG4H-1631 CAD Model

Description

The Omron XG4H-1631 is a rectangular connector in the headers, receptacles, female sockets category.

  • Series: XG4
  • Positions: 16
  • Key: Polarizing key
  • Connector Type: Receptacle
  • Sockets: Female sockets
  • Loaded: All positions
  • Rows: 2
  • Termination: Solder
  • Fastening: Latch holder
  • Package: Bulk
  • Standard Package: 120 pieces
  • Contact Material: Phosphor bronze
  • Voltage Rating: 300VAC
  • Mated Stacking Heights: 9.7mm and 10.1mm
  • Insulation Material: Polybutylene terephthalate (PBT), glass filled
  • Insulation Color: Black
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Status: Active product
