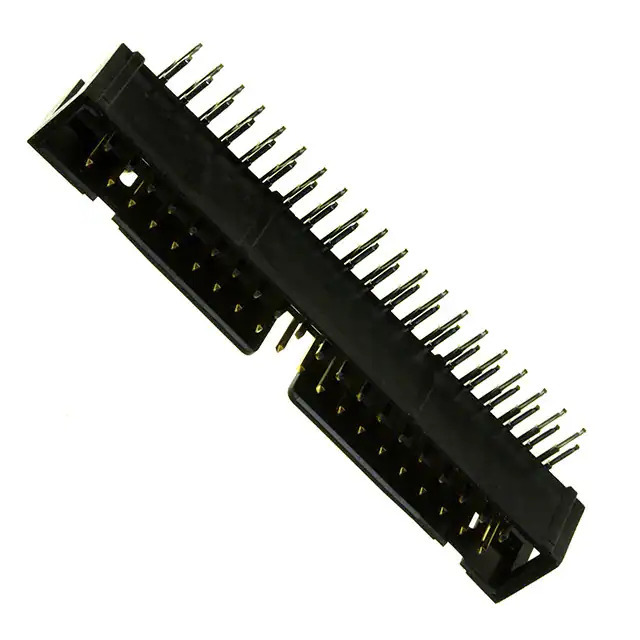

XG4C-4034

Name: XG4C-4034
Brand: Omron
SKU: 1380328
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XG4C-4034
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 40POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	-
Insulation Height	0.323" (8.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Mated Stacking Heights	-
Contact Finish Thickness - Post	78.7µin (2.00µm)
Applications	-
Base Product Number	XG4C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1380328-XG4C-4034
Ultra Librarian 3D Model	Ultra Librarian XG4C-4034 CAD Model

Description

The Omron XG4C-4034 is a rectangular connector header with male pins.

Type: Header, Male Pins
Connection Type: Board to Board or Cable
Current Rating: 3A
Pitch: 0.100" (2.54mm)
Number of Positions: 40
Number of Rows: 2
Row Spacing: -
Style: Shrouded, 4 Wall
Mounting Type: Through Hole, Right Angle
Voltage Rating: 300V
Operating Temperature: -55°C ~ 105°C
Series: XG4
