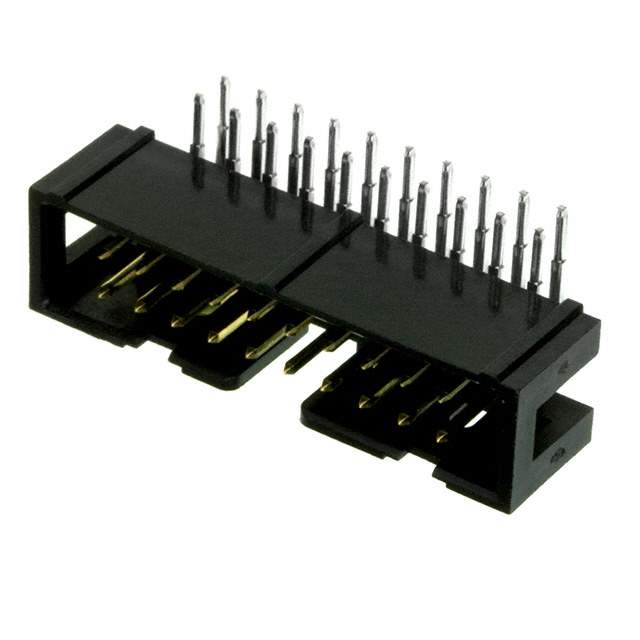

The Omron XG4C-2034 is a male pin header connector with a series of XG4.

• Positions: 20
• Features: Keying Slot, Loaded with all positions
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tray
• Contact Material: Brass and Nickel
• Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
• Voltage Rating: 300V
• Material Flammability: UL94 V-0
• Mating Pitch: 0.100" (2.54mm)
• Contact Shape: Square
• Contact Finish (Mating): Gold
• Contact Finish Thickness (Mating): 5.90µin (0.150µm)
• Contact Finish (Post): Tin
• Contact Finish Thickness (Post): 78.7µin (2.00µm)
• Insulation Color: Black
• Mounting Type: Through-Hole, Right-Angle
• Shrouding: Shrouded - 4 Wall
• Row Spacing (Mating): 0.100" (2.54mm)
• Contact Length (Post): 0.126" (3.20mm)
• Contact Length (Mating): 0.240" (6.10mm)
• Alternative Parts (Cross-Reference): XG4C2034
