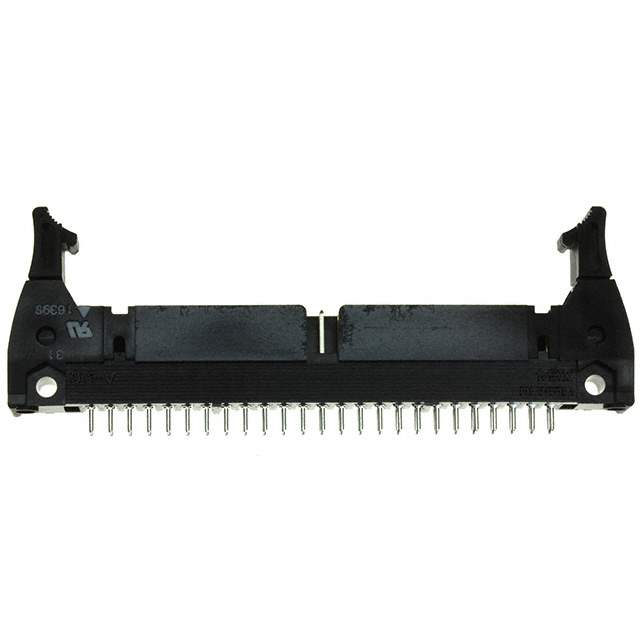

XG4A-5031 Real Image
Same model may have multiple batches, images only for reference.

XG4A-5031

Part No XG4A-5031
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER VERT 50POS 2.54MM / Connector Header Through Hole 50 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 23.5mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4A5031BYOMZ,XG4A-5031 BY OMZ,XG4A5031-ND,OR894,XG4A5031
Standard Package 30
Win Source Part Number 1000791-XG4A-5031
Ultra Librarian 3D Model Ultra Librarian XG4A-5031 CAD Model

Description

The Omron XG4A-5031 is a rectangular connector with male pins.

  • Win Source Part Number: 1000791-XG4A-5031
  • Series: XG4
  • Positions: 50
  • Features: keying slot and mounting flange
  • Type: header
  • Contact: male pin
  • Loaded: all positions
  • Rows: 2
  • Termination: solder
  • Lock: latch lock/eject hooks, long fastening type
  • Voltage Rating: 300V
  • Mated Stacking Heights: 23.5mm
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Flammability Rating: UL94 V-0
  • Standard Package: 30
  • Style: board to cable/wire
  • Pitch for Mating: 0.100" (2.54mm)
  • Contact Finish: gold
  • Contact Finish Thickness for Mating: 5.90µin (0.150µm)
  • Contact Finish: tin
  • Contact Finish Thickness for Post: 78.7µin (2.00µm)
  • Insulation Color: black
  • Mountable: through hole
  • Shrouding: shrouded - 4 wall shrouding
  • Row Spacing for Mating: 0.100" (2.54mm)
  • Contact Length for Post: 0.126" (3.20mm)
  • Contact Length for Mating: 0.240" (6.10mm)
  • Overall Contact Length: 0.657" (16.70mm)
  • Insulation Height: 0.669" (17.00mm)
  • Contact Shape: square
  • Operating Temperature: -55°C to 105°C
  • MSL Level: unlimited
  • Current Rating: 3A
  • HTSUS: 8536.69.4040
  • Manufacturer: Omron Electronics Inc-EMC Div
