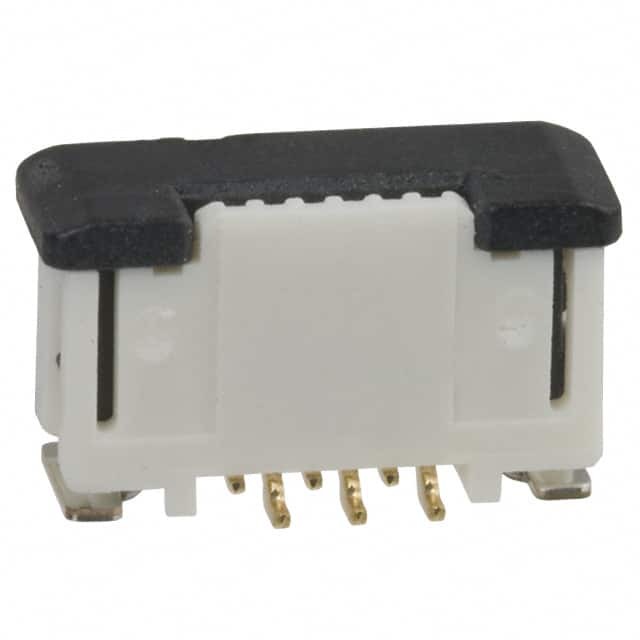

XF2J122412AR100BYOMZ

Get a Quote

Part No	XF2J122412AR100BYOMZ
Manufacturer	Omron
Catalog	Flat Flex Cables (FFC, FPC)
Datasheet	XF2J122412AR100BYOMZ Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Omron Electronics Inc-EMC Div
Series	XF2J
Package	Bulk
Product Status	Obsolete
Flat Flex Type	FPC
Mounting	SMD (SMT)
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	12
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.163" (4.15mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Polyamide (PA46), Nylon 4/6
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	30
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1316055-XF2J122412AR100BYOMZ
Ultra Librarian 3D Model	Ultra Librarian XF2J122412AR100BYOMZ CAD Model

Alternative Products

Description

The XF2J122412AR100BYOMZ is an obsolete FFC, FPC (Flat Flexible) Connector manufactured by Omron Electronics Inc-EMC Div.

Feature: Zero Insertion Force (ZIF)
Contact Orientation: Vertical
Contact Material: Copper Alloy
Contact Finish Thickness: 5.90μin (0.150μm)
Voltage Rating: 50V
Temperature Range: -30°C ~ 85°C
Housing Material: Polyamide (PA46), nylon 4/6
Housing Color: Natural
Mounting: Surface Mount
Locking Feature: Slide Lock
