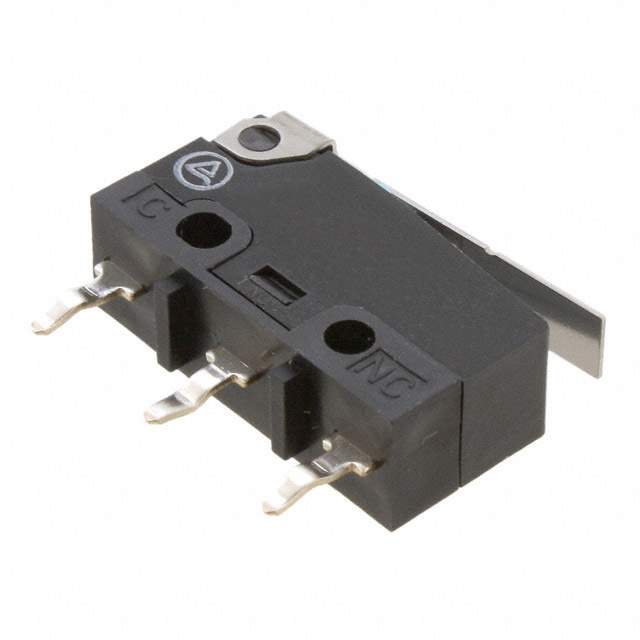

SSG-5P-5 Real Image
Same model may have multiple batches, images only for reference.

SSG-5P-5

Part No SSG-5P-5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 51gf
Release Force 4.079gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.465" (11.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-5
Other Names SSG-5P-5 BY OMZ,SSG-5P-5 BYOMZ,SSG5P5,SSG5P51,SSG 1058D,SSG5P5BYOMZ
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233444-SSG-5P-5
Ultra Librarian 3D Model Ultra Librarian SSG-5P-5 CAD Model

Description

The Omron SSG-5P-5 is a SPDT switch with a round pin plunger actuator type.

  • Circuit: SPDT
  • Actuator Type: Round pin plunger
  • Current Rating: 5A (AC) and 4A (DC)
  • Voltage Rating: 125V (AC) and 30V (DC)
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Mounting Type: Through-hole
  • Package: Bulk
  • Temperature Range: -25°C to 125°C
  • Ingress Protection Rating: IP40
  • Suitable for: Industrial applications, automation, and process control
