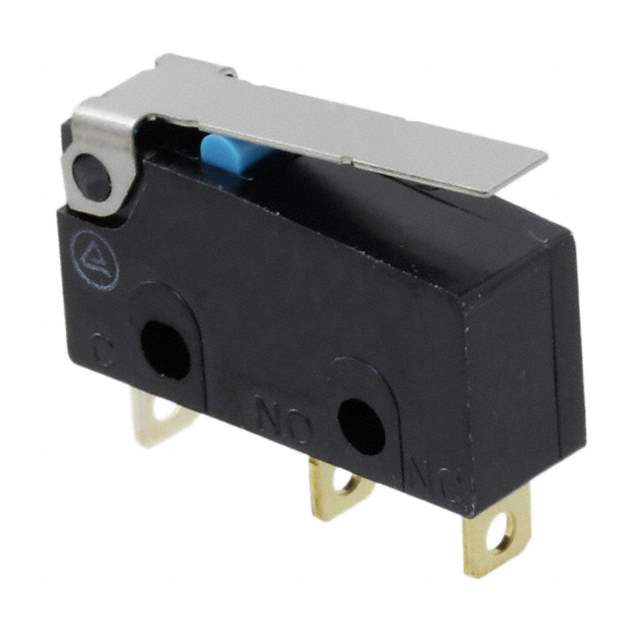

SSG-5H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 153gf
Release Force 25gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-5
Other Names SSG5H,Z12377,SSG-5H
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233442-SSG-5H
Ultra Librarian 3D Model Ultra Librarian SSG-5H CAD Model

Description

The Omron Electronics Inc-EMC Div 1233442-SSG-5H is a SPDT limit switch with a voltage rating of 125V (AC) and 30V (DC).

  • Circuit: SPDT
  • Voltage Rating: 125V (AC) and 30V (DC)
  • Current Rating: 5A (AC) and 4A (DC)
  • Operating Force: 153gf
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Pretravel: 0.024" (0.6mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.015" (0.4mm)
  • Temperature Range: -25°C to 125°C
  • Ingress Protection: IP40
  • Package: Chassis Mount
  • Switch Function: On-Mom
  • Suitable For: Switches and limit switches
