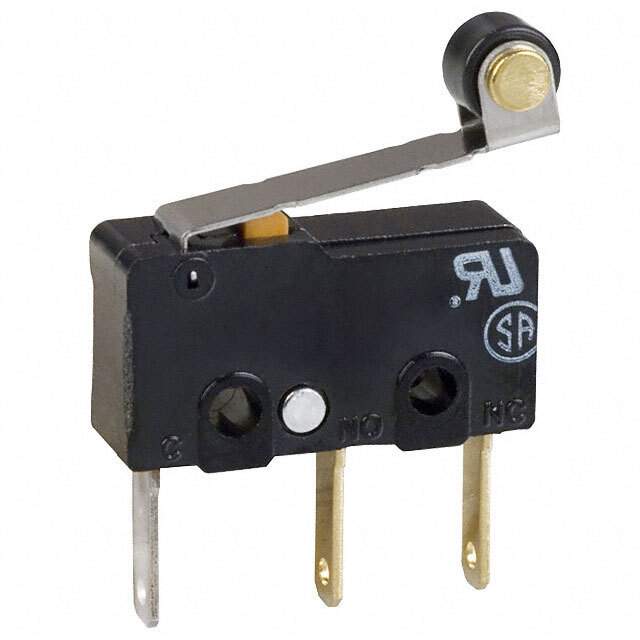

SS-5GL2-FT Real Image
Same model may have multiple batches, images only for reference.

SS-5GL2-FT

Part No SS-5GL2-FT
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
SS-5GL2-FT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL2FT,SW872,SS-5GL2-FT
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233474-SS-5GL2-FT
Ultra Librarian 3D Model Ultra Librarian SS-5GL2-FT CAD Model

Description

The SS-5GL2-FT is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Series: SS series
  • Termination Style: Quick Connect 0.110 inches
  • Switch Function: On-Mom
  • Actuator Type: Lever or Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 16gf
  • Release Force: 2.039gf
  • Differential Travel: 0.031 inches
  • Overtravel: 0.047 inches
  • Mounting: Chassis Mountable
  • Operating Temperature: -25°C to 85°C
