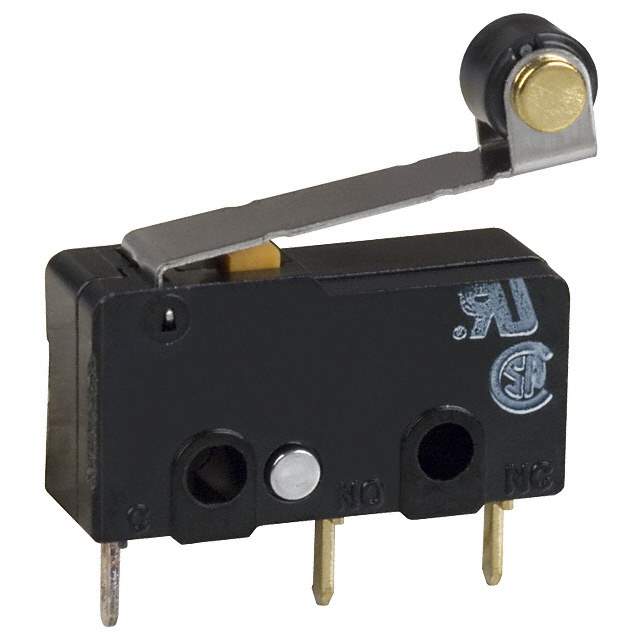

SS-5GL2-FD2 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL2-FD2

Part No SS-5GL2-FD2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V  /  Switch SPDT Through Hole, Right Angle
Datasheet
SS-5GL2-FD2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names 2266-SS-5GL2-FD2,SS5GL2FD2
Standard Package 400
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233473-SS-5GL2-FD2
Ultra Librarian 3D Model Ultra Librarian SS-5GL2-FD2 CAD Model

Description

The Omron SS-5GL2-FD2 is a SPDT limit switch with a circuit that is rated for 5A (AC) and an operating force of 16gf.

  • Switch Function: On-Mom
  • Actuator Type: Lever and Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Release Force: 2.039gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.571" (14.5mm)
  • Mounting: Through Hole
  • Termination Style: Right Angle
  • Ingress Protection: IP40
  • Voltage: 125V (AC)
  • Operating Temperature: -25°C to 85°C
