Same model may have multiple batches, images only for reference.

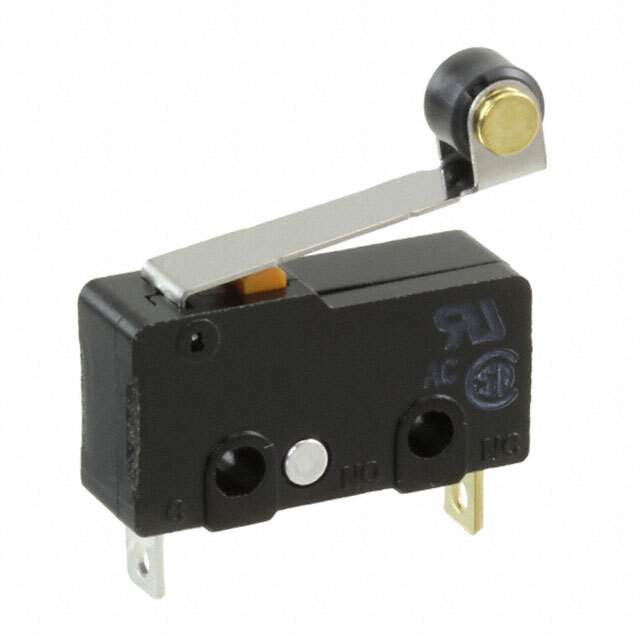

SS-5GL2-2 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL2-2

Part No SS-5GL2-2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NC 5A 125V / Switch SPST-NC Chassis Mount
Datasheet
SS-5GL2-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names -SS-5GL2-2,2266-SS-5GL2-2,SS5GL22BYOMI,Z4581,SS5GL22,SS-5GL2-2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233532-SS-5GL2-2
Ultra Librarian 3D Model Ultra Librarian SS-5GL2-2 CAD Model

Description

The SS-5GL2-2 is a lever and roller actuator type limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Mounting Type: Chassis Mount
  • Termination Style: Solder Lug
  • Circuit: Single Pole, Single Throw Normally Closed
  • Operating Temperature: -25°C to 85°C
  • Mechanical Life: 30,000,000 Cycles
  • Electrical Life: 200,000 Cycles
  • Ingress Protection: IP40
