Same model may have multiple batches, images only for reference.

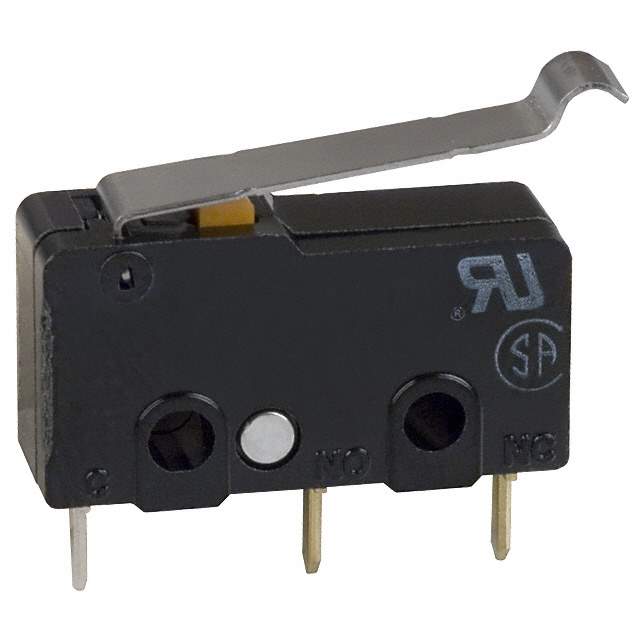

SS-5GL13D2 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL13D2

Part No SS-5GL13D2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Through Hole, Right Angle
Datasheet
SS-5GL13D2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL13D2
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233467-SS-5GL13D2
Ultra Librarian 3D Model Ultra Librarian SS-5GL13D2 CAD Model

Description

The Omron Electronics Inc-EMC Div electronic component is a switch that belongs to the SS series.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Ingress Protection: IP40
  • Voltage Rating: 125 V AC
  • Mounting Type: Through-Hole, Right-Angle
  • Temperature Range: -25°C to 85°C
  • Package: Tray
  • Standard Package: 500
