Same model may have multiple batches, images only for reference.

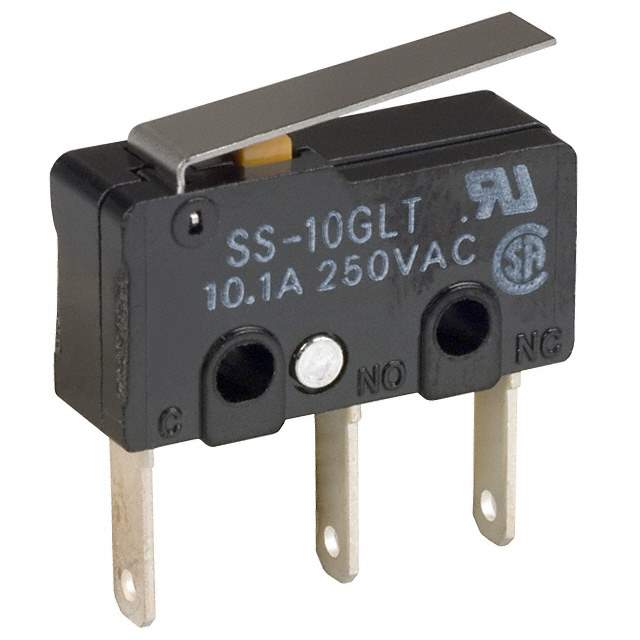

SS-10GLT Real Image
Same model may have multiple batches, images only for reference.

SS-10GLT

Part No SS-10GLT
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description Switch Snap Action N.O./N.C. SPDT Hinge Lever 10.1A 250VAC 0.49N Screw Mount Quick Connect
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Current Rating 10.1 A
Contact Material Silver
Current Rating 10.1 A
Differential Travel 1.016 mm
Electrical Life 50 kcycles
Lead Free Yes
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 14 V
Mechanical Life 10 Mcycles
Min Operating Temperature -25 °C
Mount Chassis Mount, Screw
Number of Poles 1
Number of Positions 2
Operating Force 490 mN
Operating Position 8.763 mm
Orientation Straight
Overtravel 990.6 µm
Radiation Hardening No
Ratings IP40
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536509040, 8536509040
Switch Function On-Mom
Termination Quick Connect
Throw Configuration SPDT
Voltage Rating (AC) 125 V
Voltage Rating (DC) 30 V
Win Source Part Number 1096092-SS-10GLT
Categories Snap Action,Limit Switches
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SS-10GLT CAD Model

Description

The SS-10GLT is a 2-position snap action limit switch from Omron.

  • Contact Material: Silver
  • Current Rating: 10.1 A
  • Operating Force: 490 mN
  • Electrical Life: 50 kcycles
  • Mechanical Life: 10 Mcycles
  • Differential Travel: 1.016 mm
  • Overtravel: 990.6 µm
  • Ingress Protection: IP40
  • Maximum Operating Temperature: 85 °C
  • Mounting Type: Chassis Mount, Screw
  • RoHS: Compliant
  • Voltage Rating (AC): 125 V AC
  • Voltage Rating (DC): 30 V DC
  • Maximum Voltage Rating (AC): 250 V AC
  • Maximum Voltage Rating (DC): 14 V DC
