Same model may have multiple batches, images only for reference.

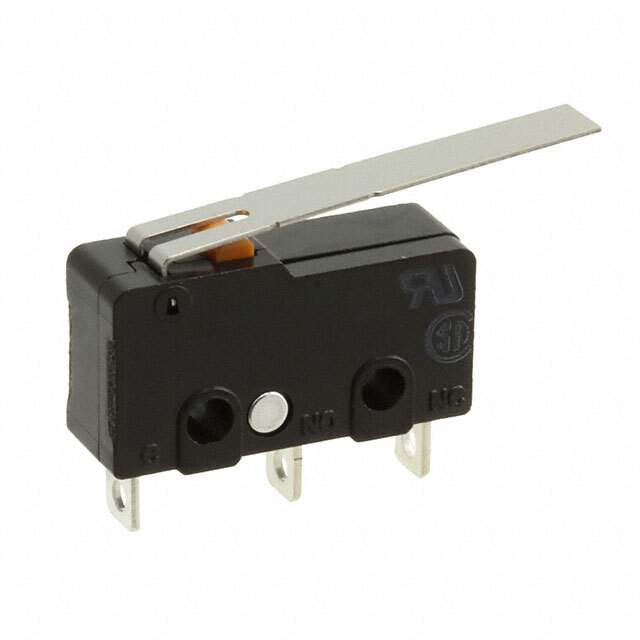

SS-10GL111 Real Image
Same model may have multiple batches, images only for reference.

SS-10GL111

Part No SS-10GL111
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 250V  /  Switch SPDT Chassis Mount
Datasheet
SS-10GL111 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 40gf
Release Force 3.059gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names -SS-10GL111,Z4563,SS10GL111,SS-10GL111,SS10GL111BYOMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233563-SS-10GL111
Ultra Librarian 3D Model Ultra Librarian SS-10GL111 CAD Model

Description

The SS-10GL111 is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Series: SS
  • Standard Package: 500
  • Temperature Range: -25°C to 85°C
  • Current Rating: 10A (AC)
  • Circuit: SPDT
  • Actuator Type: Lever, Straight
