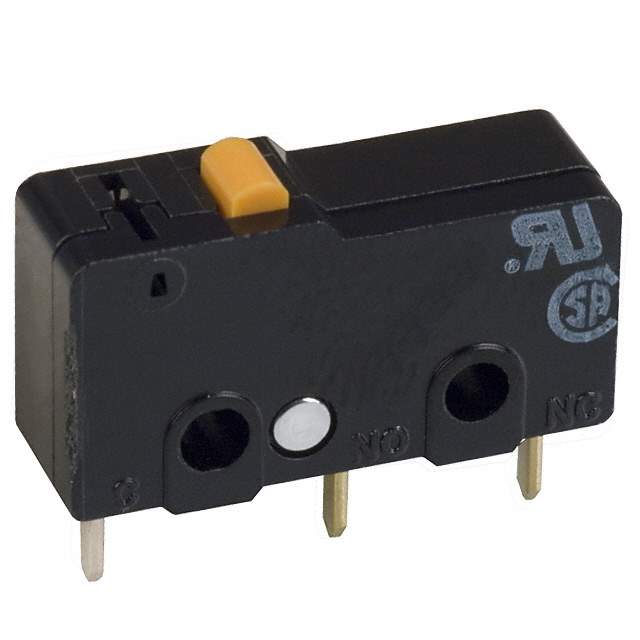

SS-01D2 Real Image
Same model may have multiple batches, images only for reference.

SS-01D2

Part No SS-01D2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole, Right Angle
Datasheet
SS-01D2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01
Other Names SS-01D2,SS01D2,Z12371
Standard Package 400
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233482-SS-01D2
Ultra Librarian 3D Model Ultra Librarian SS-01D2 CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01D2 is a SPDT circuit limit switch that has a PC pin termination style.

  • Actuator Type: Round (Pin Plunger)
  • Mounting: Through-Hole, Right-Angle
  • Operating Force: 150gf
  • Release Force: 25gf
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.020" (0.5mm)
  • Operating Position: 0.330" (8.4mm)
  • Ingress Protection: IP40
  • Voltage Rating: 125 VAC and 30 VDC
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Temperature Range: -25°C to 85°C
  • ECCN: EAR99 compliant
  • Current Rating: 100mA (AC/DC)
