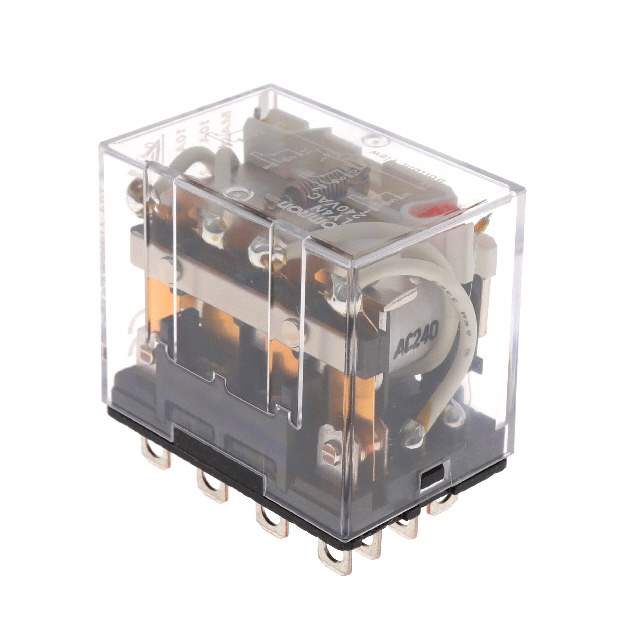

LY4N-AC240 Real Image
Same model may have multiple batches, images only for reference.

LY4N-AC240

Part No LY4N-AC240
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 240V  /  General Purpose Relay 4PDT (4 Form C) 240VAC Coil Socketable
Datasheet
LY4N-AC240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series LY
Package Bulk
Mounting Type Socketable
Coil Voltage 240VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 9.5 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 192 VAC
Must Release Voltage 72 VAC
Operate Time 25 ms
Release Time 25 ms
Temperature Range - Operating -25°C ~ 40°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 9 kOhms
Base Product Number LY4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0075
Other Names LY4N-AC240-ND,Z11246,LY4NAC240
Standard Package 1
Win Source Part Number 1073287-LY4N-AC240
Ultra Librarian 3D Model Ultra Librarian LY4N-AC240 CAD Model

Description

The LY4N-AC240 power relay from the LY series with part number 1073287 is a 4PDT (4 Form C) plug-in type with a lighted indicator feature.

  • Package: Bulk
  • Contact Material: Silver Alloy
  • Coil Resistance: 9 kOhms
  • Coil Current: 9.5 mA
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Contact Rating Current: 10 A
  • Switching Voltage: 250VAC and 125VDC maximum
  • Seal Rating: Not Specified
  • Mounting Type: Socketable
  • Operating Temperature: -25°C to 40°C
  • Alternative Parts and Cross-References: Available
