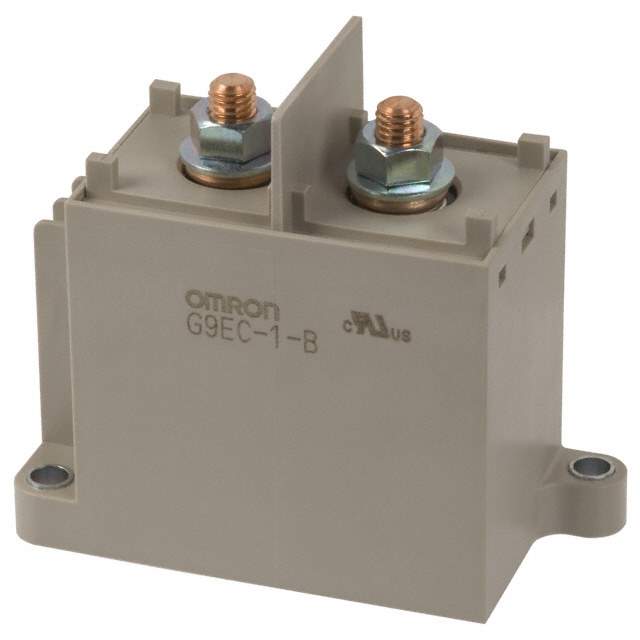

G9EC-1-B DC24 Real Image
Same model may have multiple batches, images only for reference.

G9EC-1-B DC24

Part No G9EC-1-B DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 200A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
Datasheet
G9EC-1-B DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G9EC-1
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 200 A
Switching Voltage 400VDC - Max
Coil Current 469 mA
Coil Type Non Latching
Termination Style Screw Terminal
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 1.92 VDC
Operate Time 50 ms
Release Time 30 ms
Temperature Range - Operating -40°C ~ 50°C
Relay Type General Purpose
Coil Resistance 51.2 Ohms
Base Product Number G9EC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names G9EC-1-B-DC24,G9EC1B24VDC,G9EC-1-B-24VDC-ND,Q1626849,G9EC1B24DC,G9EC-1-B-DC24INACTIVE,G9EC-1-B-DC24-ND,G9EC1000B,G9EC1B DC24,Z1619,G9EC-1-B-24VDC,G9EC1BDC24
Standard Package 1
Win Source Part Number 1056737-G9EC-1-B DC24
Ultra Librarian 3D Model Ultra Librarian G9EC-1-B DC24 CAD Model

Description

The Omron 1056737-G9EC-1-B DC24 is a power relay with a unique specification that is provided by the manufacturer.

  • It is a: Win Source Part Number with a category of relays and a series of G9EC-1.
  • Termination Style: screw terminal
  • Seal Rating: sealed - fully
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 200A
  • Coil Voltage: 24VDC
  • Coil Resistance: 51.2 Ohms
  • Coil Current: 469mA
  • Relay Type: general purpose with a non-latching coil type.
  • Switching Voltage: 400VDC - Max
  • Operate Time: 50ms
  • Release Time: 30ms
  • Operating Temperature Range: -40°C to 50°C
