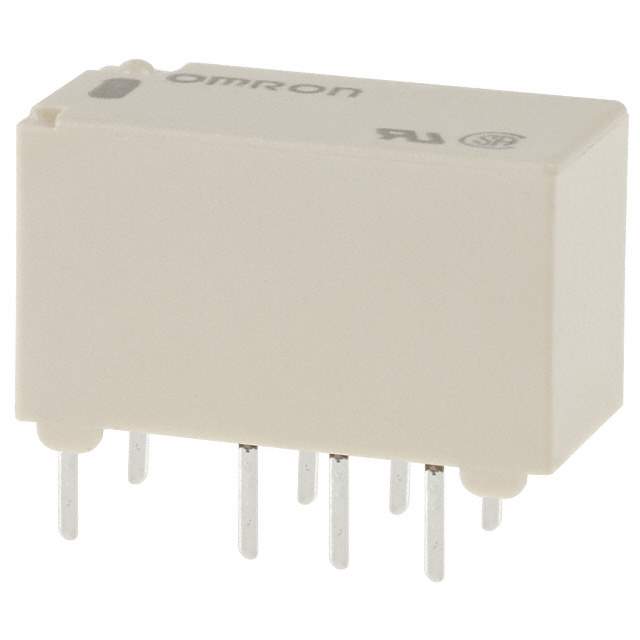

The G6S-2-Y-DC12 is a compact, highly reliable signal relay from Omron. This relay is designed for high-density mounting and low power consumption, making it ideal for use in telecommunications, measurement, and control equipment. It features a 2 Form C (DPDT) contact configuration and operates with a 12VDC coil voltage. The 'Y' suffix typically indicates a specific terminal configuration or material characteristic for enhanced performance or environmental compatibility.

Applications:

• Telecommunications Equipment: Used for line switching, signal routing, and data transmission systems.
• Measurement and Instrumentation: Employed in testers, data acquisition systems, and analytical instruments.
• Control Systems: Integrated into programmable logic controllers (PLCs), industrial automation systems, and process control equipment.
• Security Systems: Utilized in alarm systems, access control, and surveillance equipment.
• Medical Equipment: Found in patient monitoring systems, diagnostic devices, and laboratory equipment.

Features:

• Compact Size: Allows for high-density mounting on printed circuit boards (PCBs), maximizing board space utilization.
• Low Power Consumption: Minimizes energy usage, making it suitable for battery-powered and energy-sensitive applications.
• High Sensitivity: Requires minimal coil power for reliable switching, enhancing overall efficiency.
• 2 Form C (DPDT) Contact Arrangement: Provides versatile switching options for a wide range of circuit configurations.
• High Dielectric Strength: Ensures robust electrical isolation between the coil and contacts, enhancing safety and reliability.
• Long Life Expectancy: Offers high reliability and extended operational life, reducing maintenance requirements.

Benefits:

• Space Savings: Compact design enables efficient use of board space in densely populated electronic devices.
• Energy Efficiency: Low power consumption reduces overall system power requirements and extends battery life.
• Versatile Switching: The 2 Form C contact arrangement allows for flexible circuit design and control.
• Reliable Performance: High sensitivity and long life expectancy ensure consistent and dependable operation.
• Enhanced Safety: High dielectric strength provides electrical isolation and protects against voltage surges.

Additional Details:

The G6S-2-Y-DC12 relay typically has a coil resistance optimized for operation with a 12VDC supply. Its contact rating is generally around 0.5A at 125VAC or 1A at 30VDC, making it suitable for switching low-level signals. The relay is often available in both through-hole and surface mount configurations to accommodate various PCB assembly processes. The materials used are selected for their environmental compatibility and long-term reliability.

The G6S series, including the G6S-2-Y-DC12, is a popular choice for applications requiring high reliability, compact size, and low power consumption. Its robust design and versatile switching capabilities make it a valuable component in a wide range of electronic devices and systems.
