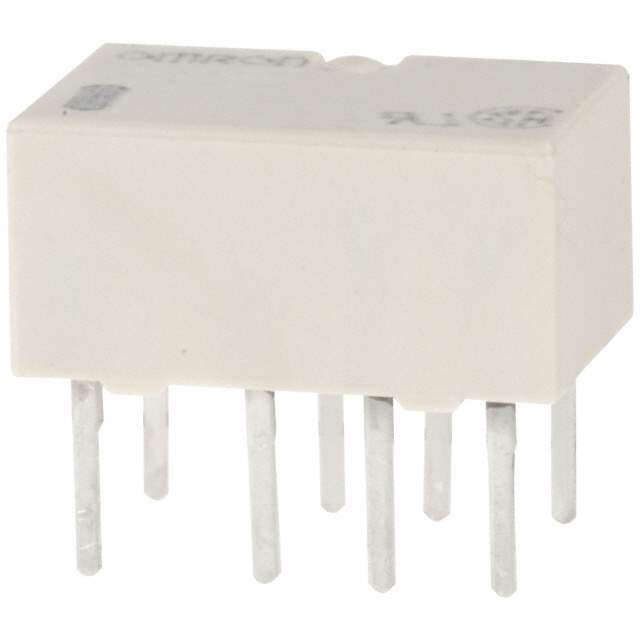

G6KU2PY5DC Real Image
Same model may have multiple batches, images only for reference.

G6KU2PY5DC

Part No G6KU2PY5DC
Manufacturer Omron
Catalog Custom Parts (E - I)
Description Signal Relay, G6K Series, Latching Single Coil, DPDT, Through Hole, 1 A, 5 VDC RoHS Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package DIP
Coil Current 21.1 mA
Coil Power 100 mW
Coil Resistance 237 Ω
Coil Voltage (DC) 5 V
Contact Current Rating 1 A
Contact Material Gold, Silver
Contact Resistance 100 mΩ
Depth 6.5 mm
Height 5 mm
Insulation Resistance 1 GΩ
Length 10 mm
Max Operating Temperature 70 °C
Min Operating Temperature -40 °C
Mount PCB
Number of Pins 8
Number of Poles 2
Operate Time 3 ms
Power Consumption 100 mW
Power Rating 100 mW
Radiation Hardening No
Ratings IP67
REACH SVHC Unknown
Relay Type General Purpose
Release Time 3 ms
RoHS Compliant
Switching Current 300 mA
Termination PC Pin
Throw Configuration DPDT
Voltage Rating (AC) 125 V
Voltage Rating (DC) 60 V
Weight 700 mg
Width 10 mm
Win Source Part Number 1201085-G6KU2PY5DC
Categories Custom Parts
Manufacturer Omron
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G6KU2PY5DC CAD Model

Description

The Omron G6KU2PY5DC is a general-purpose relay with a coil voltage (DC) of 5V and a contact current rating of 1A.

  • Coil Voltage (DC): 5V
  • Contact Current Rating: 1A
  • Termination: PC Pin
  • Contact Material: Gold and Silver
  • Length: 10mm
  • Weight: 700mg
  • Height: 5mm
  • Width: 10mm
  • Poles: 2
  • Pins: 8
  • Throw Configuration: DPDT
  • Power Rating: 100mW
  • Switching Current: 300mA
  • Coil Resistance: 237 Ω
  • Coil Current: 21.1 mA
  • Operate Time: 3ms
  • Release Time: 3ms
  • Insulation Resistance: 1 GΩ
  • Case/Package: DIP
  • RoHS Compliant: Yes
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 60V
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 70 °C
