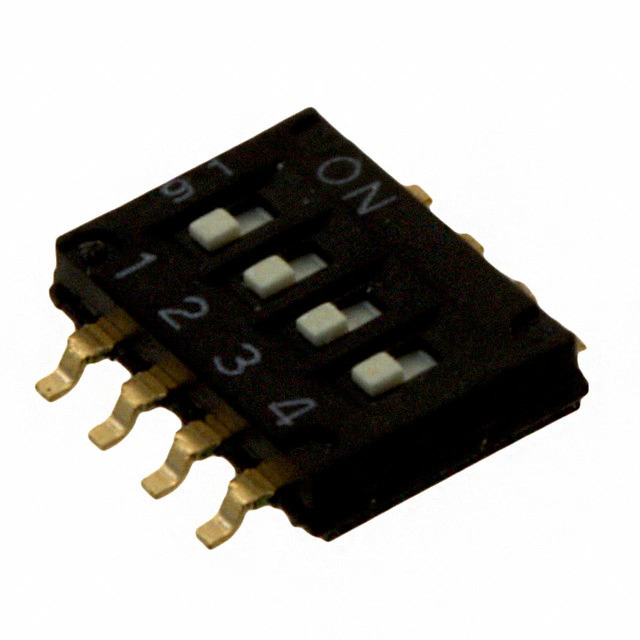

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Height Above Board 0.061" (1.55mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Temperature Range - Operating -20°C ~ 70°C
Length 0.248" (6.31mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 75
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806667-A6H-4101
Ultra Librarian 3D Model Ultra Librarian A6H-4101 CAD Model

Description

The Omron Electronics Inc-EMC Div 806667-A6H-4101 is a 4-position SPST slide switch with a half pitch of 0.050 inches (1.27mm) and gull wing termination style.

  • Voltage Rating: 24VDC
  • Height Above Board: 0.061 inches (1.55mm)
  • Actuator Level: Flush, Recessed
  • Temperature Range: -20°C to 70°C
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Supply & Demand Status: Balanced
  • Manufacturer Pack Quantity: 75
