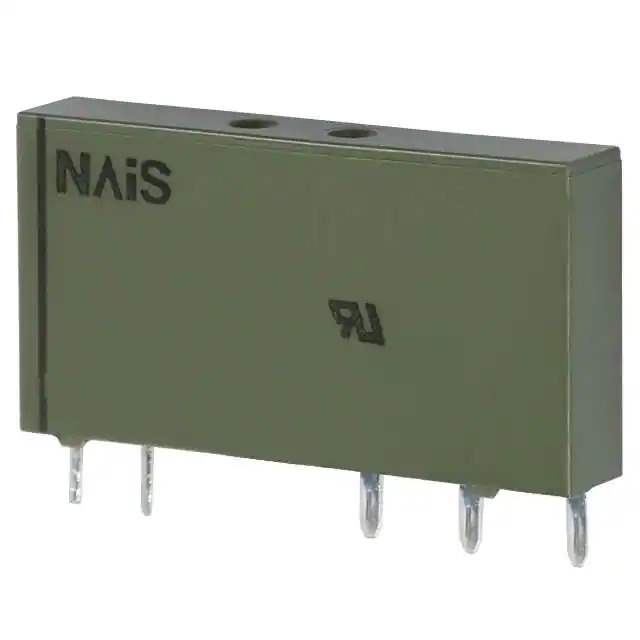

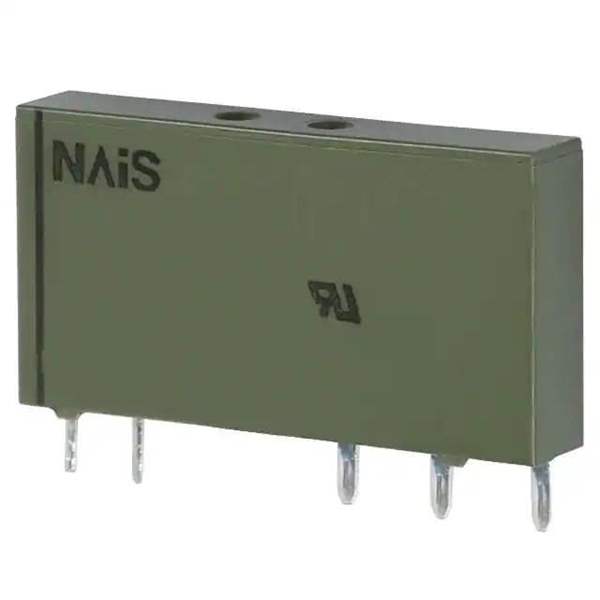

APE30012 Real Image
Same model may have multiple batches, images only for reference.

APE30012

Part No APE30012
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Datasheet
APE30012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series APE
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 14 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 7.92 VDC
Must Release Voltage 0.6 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 847 Ohms
Base Product Number APE300
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 861550-APE30012
Ultra Librarian 3D Model Ultra Librarian APE30012 CAD Model

Description

The 861550-APE30012 is a power relay from the APE series by Panasonic.

  • Coil Voltage: 12VDC
  • Coil Resistance: 847 ohms
  • Contact Form: SPDT
  • Contact Rating: 6A
  • Switching Voltage: 250VAC
  • Operate Time: 8 ms
  • Release Time: 4 ms
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Package: Tube
  • Standard Package Quantity: 20 pcs
