Same model may have multiple batches, images only for reference.

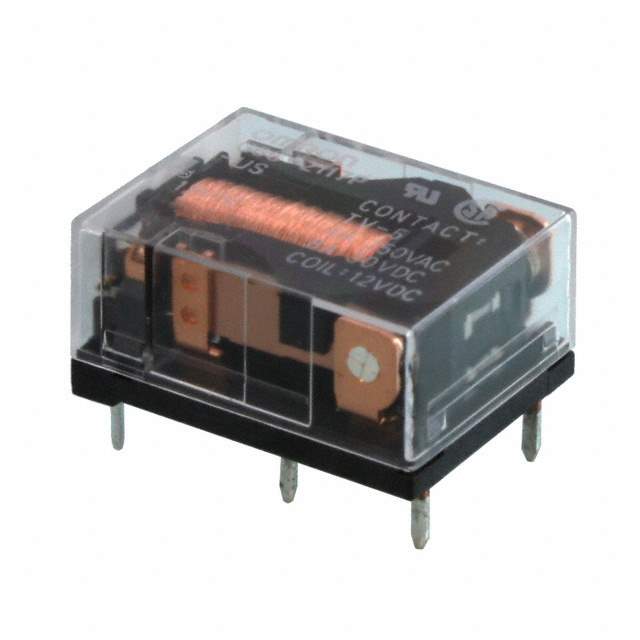

G6C-1117P-US-DC24 Real Image
Same model may have multiple batches, images only for reference.

G6C-1117P-US-DC24

Part No G6C-1117P-US-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
G6C-1117P-US-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6C
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G6C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names G6C1117PUSDC24,-G6C-1117P-US,G6C-1117P-US-DC24-ND,G6C 1330H,Z3625,G6C1117PUS24DC
Standard Package 1,000
Win Source Part Number 1148565-G6C-1117P-US-DC24
Ultra Librarian 3D Model Ultra Librarian G6C-1117P-US-DC24 CAD Model

Description

The Omron G6C-1117P-US-DC24 is a general-purpose relay with a contact rating of 10A and a switching voltage of 380VAC and 125VDC.

  • Contact Rating: 10A
  • Switching Voltage: 380VAC, 125VDC
  • Termination Style: PC Pin
  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88kOhms
  • Operate Time: 10ms
  • Release Time: 10ms
  • Protection: Sealed with Flux Protection
  • Mounting Type: Through-Hole
  • Temperature Range: -25°C to 70°C
