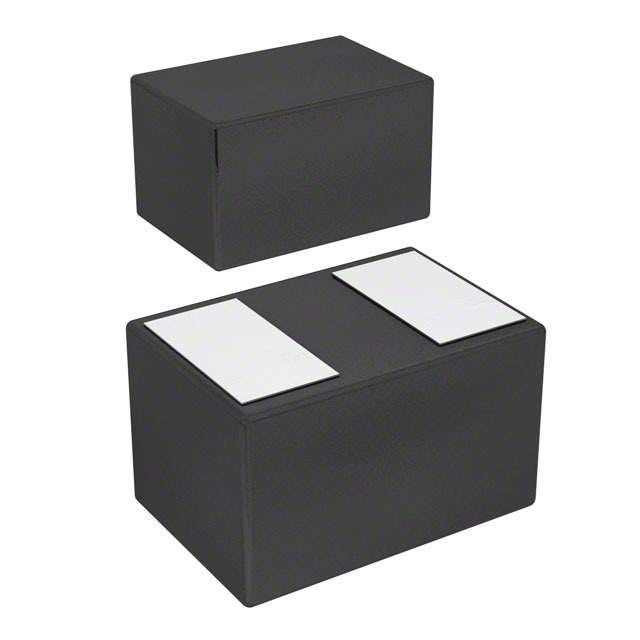

VCUT05E1-SD0-G4-08 Real Image
Same model may have multiple batches, images only for reference.

VCUT05E1-SD0-G4-08

Part No VCUT05E1-SD0-G4-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5.5V 11V CLP0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Maximum)
Voltage - Breakdown (Min) 6.5V
Voltage - Clamping (Maximum) at Ipp 11V (Typ)
Current - Peak Pulse (10/1000μs) 6A (8/20μs)
Power - Peak Pulse 78W
Power Line Protection No
Applications Use For General
Capacitance at Frequency 13pF at 1MHz
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 0201 (0603 Metric)
Supplier Device Package CLP0603
Manufacturer Pack Quantity 15,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803076-VCUT05E1-SD0-G4-08
Ultra Librarian 3D Model Ultra Librarian VCUT05E1-SD0-G4-08 CAD Model

Description

The Vishay Semiconductor Diodes Division VCUT05E1-SD0-G4-08 is a Zener diode manufactured by Vishay Semiconductor Diodes Division. It has a reverse voltage of 5.5V and a power dissipation of 78W.

  • Reverse Voltage: 5.5V
  • Power Dissipation: 78W
  • Operating Temperature: -55°C to 150°C
  • Supply and Demand Status: Balanced
