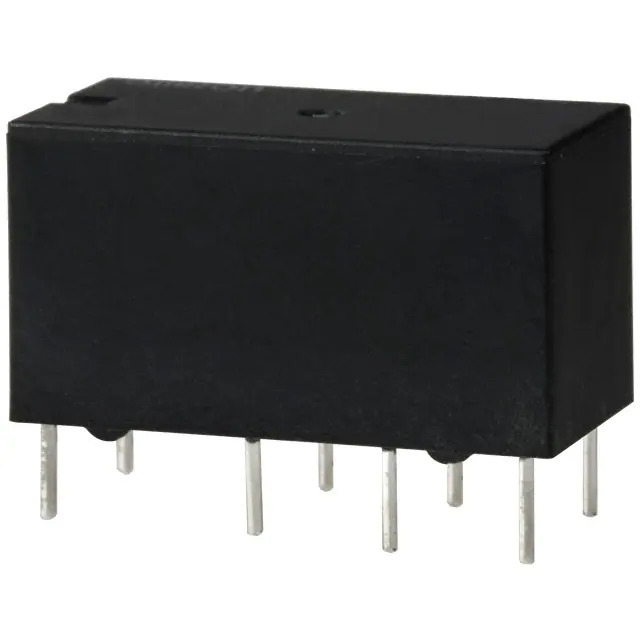

G5V-2-H1 DC48 Omron
Same model may have multiple batches, images only for reference.

G5V-2-H1 DC48

Part No G5V-2-H1 DC48
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 48VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5V-2
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 125VDC - Max
Coil Current 6.3 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 36 VDC
Must Release Voltage 2.4 VDC
Operate Time 7 ms
Release Time 3 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 7.68 kOhms
Base Product Number G5V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373490-G5V-2-H1 DC48
Ultra Librarian 3D Model Ultra Librarian G5V-2-H1 DC48 CAD Model

Description

The G5V-2-H1 DC48 is a signal relay manufactured by Omron Electronics Inc-EMC Div.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 1 A
  • Coil Voltage: 48VDC
  • Coil Current: 6.3 mA
  • Switching Voltage: 125VAC and 125VDC
  • Design: Sealed and Fully Protected
  • Operating Temperature: -25°C to 70°C
  • Operate Time: 7 ms
  • Release Time: 3 ms
  • Contact Material: Silver (Ag) and Gold (Au)
