Same model may have multiple batches, images only for reference.

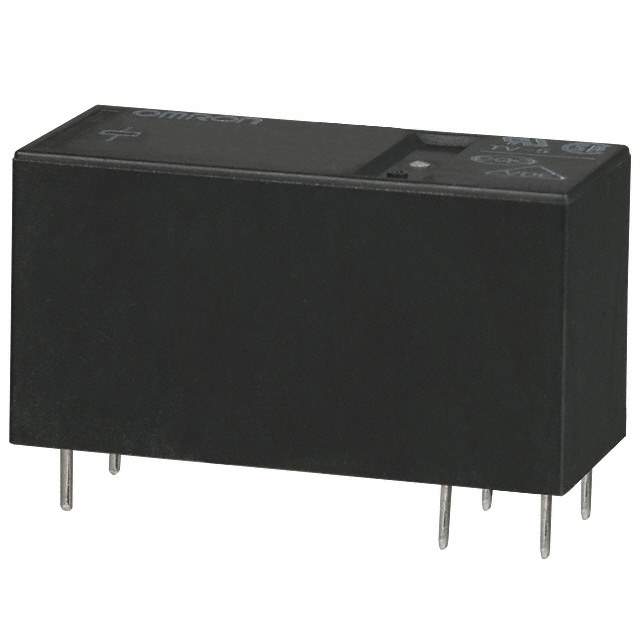

G5RL-1A-E-HR DC12 Real Image
Same model may have multiple batches, images only for reference.

G5RL-1A-E-HR DC12

Part No G5RL-1A-E-HR DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5RL
Package Bulk
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number G5RL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Names G5RL1AEHR12DC,G5RL-1A-E-HR-DC12,G5RL1AEHRDC12,Q7785886A,G5RL6163F,Z2580
Standard Package 100
Win Source Part Number 1060259-G5RL-1A-E-HR DC12
Ultra Librarian 3D Model Ultra Librarian G5RL-1A-E-HR DC12 CAD Model

Description

The Omron G5RL-1A-E-HR DC12 is a power relay that belongs to the over 2 amps relay category.

  • Termination Style: PC Pin
  • Use: General-purpose
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver alloy, cadmium-free
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Contact Rating: 16 A
  • Switching Voltage: 250VAC, 24VDC - Max
  • Mounting Type: Through-hole
  • Alternative Part: G5LE-1A-E DC12, G2RL-1A-E DC12, G2RL-1A-E-CF DC12, 1-1415899-6, ALZ51B12, ALZ51F12W, G2RL-1A4-E DC12, ALZ51F12G5RL-1A-E-HR-DC12, G5RL-1A-E-HRDC12, and G5RL1AEHRDC12
