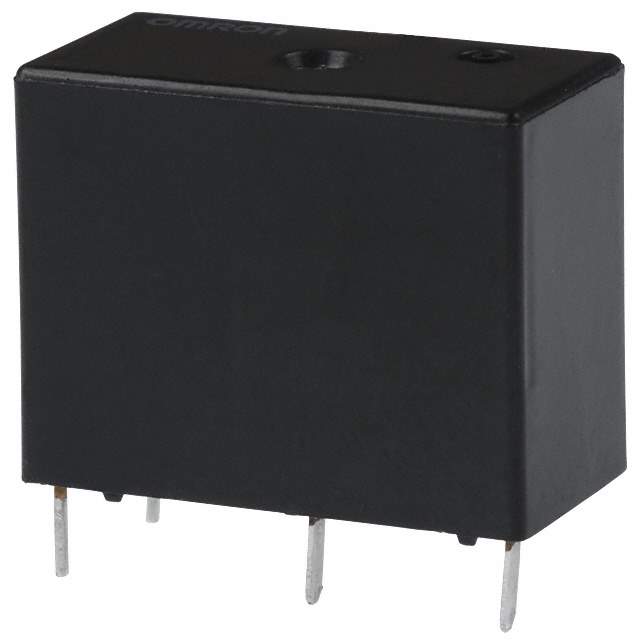

G5Q-14 DC12 Real Image
Same model may have multiple batches, images only for reference.

G5Q-14 DC12

Part No G5Q-14 DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5Q
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number G5Q
Other Names Z225,Q4432359A,G5Q-14-DC12,G5Q1412DC,G6A 1133B,G5Q14DC12
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1237297-G5Q-14 DC12
Ultra Librarian 3D Model Ultra Librarian G5Q-14 DC12 CAD Model

Description

The Omron G5Q-14 DC12 is a SPDT (1 Form C) relay with a contact rating of 10 A and a switching voltage of 277VAC, 30VDC - Max.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 10 A
  • Switching Voltage: 277VAC, 30VDC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Temperature Range: -40°C to 105°C
  • Coil Type: Non-Latching
  • Operate Time: 10 ms
  • Mounting: Through Hole
  • Package: Tray
  • Seal Rating: Sealed - Fully
