Same model may have multiple batches, images only for reference.

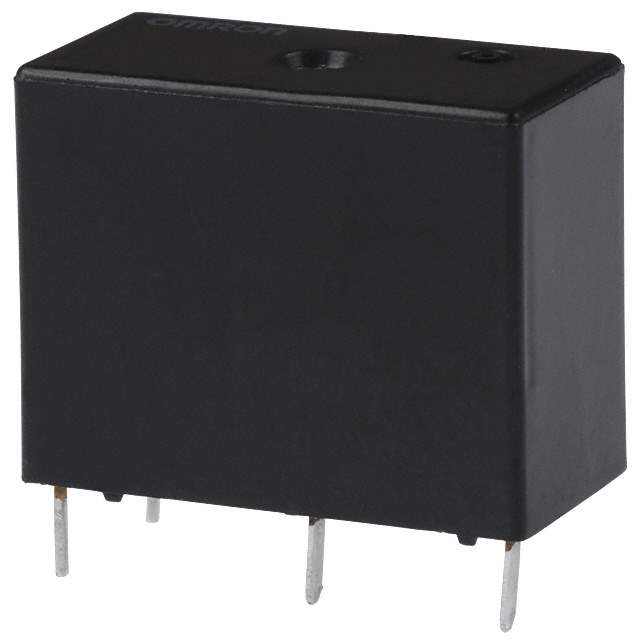

G5Q-1-DC12 Real Image
Same model may have multiple batches, images only for reference.

G5Q-1-DC12

Part No G5Q-1-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Power Relay 12VDC 5(NO)/3(NC)DC/10(NO)/3(NC)AAC SPDT(20.3x10.3x16.2)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL, VDE
Coil Current 33.3 mA
Coil Power 400 mW
Coil Resistance 360 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 10 A
Contact Material Silver
Current Rating 10 A
Depth 10.3 mm
Lead Free Yes
Length 20.3 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 277 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Pins 5
Operate Time 10 ms
Packaging Bulk
Power Consumption 400 mW
Power Rating 375 W
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Schedule B 8536410020
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (AC) 277 V
Weight 6.5 g
Win Source Part Number 1060243-G5Q-1-DC12
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G5Q-1-DC12 CAD Model

Description

The Omron G5Q-1-DC12 is a general-purpose power relay that is designed for use in a wide range of applications.

  • Current Rating: 10A
  • Power Rating: 375W
  • Coil Resistance: 360 Ω
  • Contact Material: Silver
  • Weight: 6.5g
  • Installation: PCB mountable, through-hole
  • RoHS: Compliant
  • Approvals: CSA, UL, and VDE
