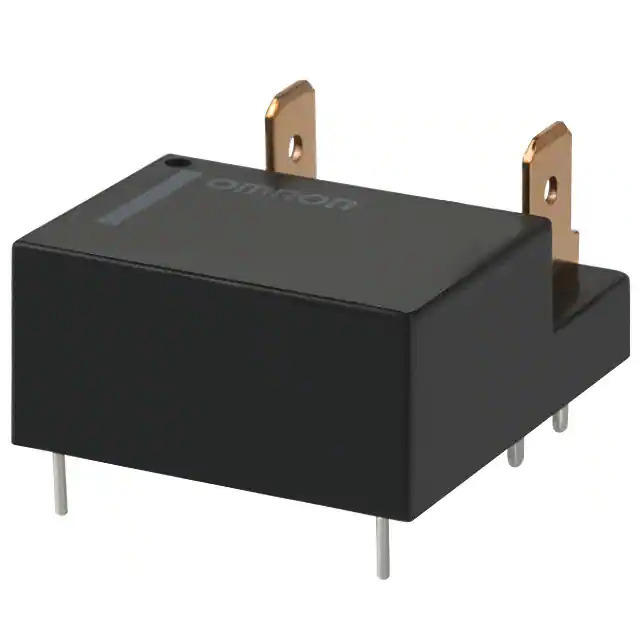

G5CA-1A-TP-E DC12 Omron
Same model may have multiple batches, images only for reference.

G5CA-1A-TP-E DC12

Part No G5CA-1A-TP-E DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 15A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5CA
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Features -
Termination Style PC Pin, Quick Connect - 0.187" (4.7mm)
Seal Rating Sealed - Flux Protection
Coil Insulation -
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material -
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number G5CA
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373443-G5CA-1A-TP-E DC12
Ultra Librarian 3D Model Ultra Librarian G5CA-1A-TP-E DC12 CAD Model

Description

The G5CA-1A-TP-E DC12 is a power relay designed for high-current applications, manufactured by Omron Electronics Inc-EMC Div.

  • Relay Type: Power Relay
  • Series: G5CA
  • Operating Temperature: -25°C ~ 70°C
  • Coil Voltage: 12VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 15A
  • Switching Voltage: 250VAC, 125VDC
  • Coil Type: Non-Latching
  • Seal Rating: Sealed, Flux Protection
  • Termination Style: PC Pin, Quick Connect
