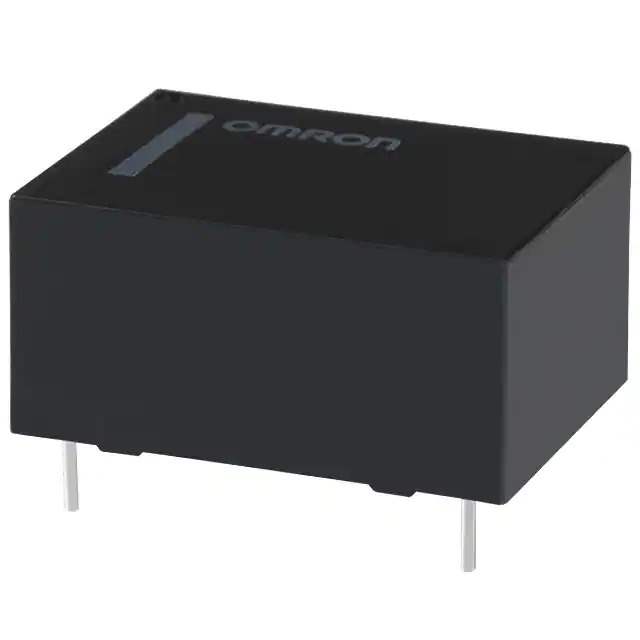

G5CA-1A-L DC24 Real Image
Same model may have multiple batches, images only for reference.

G5CA-1A-L DC24

Part No G5CA-1A-L DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
G5CA-1A-L DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series G5CA
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G5CA
Standard Package 20 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 872541-G5CA-1A-L DC24
Ultra Librarian 3D Model Ultra Librarian G5CA-1A-L DC24 CAD Model

Description

The 872541-G5CA-1A-L DC24 is a power relay from Omron's G5CA series. Bold the product name (e.g., BAV99S,135 → 872541-G5CA-1A-L DC24) and manufacturer (e.g., Nexperia USA Inc. → Omron).

  • Series: G5CA
  • Termination Style: PC Pin
  • Packaging: Tube
  • Contact Form: SPST-NO
  • Contact Form: 1 Form A
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3 mA
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Coil Type: Non-Latching
  • Coil Voltage: 24VDC
  • Contact Rating: 10A
  • Switching Voltage: 250VAC, 125VDC max
  • Protection Rating: Sealed Flux
  • Mounting Type: Through Hole
  • Operating Temperature Range: -25°C to 70°C
