Same model may have multiple batches, images only for reference.

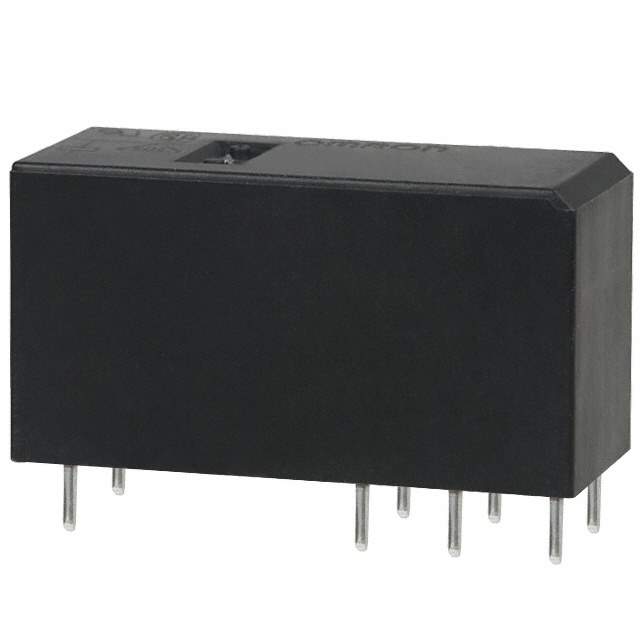

G2RL-24 DC18 Real Image
Same model may have multiple batches, images only for reference.

G2RL-24 DC18

Part No G2RL-24 DC18
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Power Relay 18VDC 8A DPDT(29x12.7x15.7)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package DIP
Coil Current 22.2 mA
Coil Power 400 mW
Coil Resistance 811 Ω
Coil Type Non-Latching
Coil Voltage (DC) 18 V
Contact Current Rating 8 A
Contact Material Cadmium, Silver
Max Current Rating 8 A
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 440 V
Max Voltage Rating (DC) 300 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 8
Operate Time 15 ms
Packaging Bulk
Radiation Hardening No
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Termination PC Pin
Throw Configuration DPDT
Weight 12 g
Win Source Part Number 1182134-G2RL-24 DC18
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G2RL-24 DC18 CAD Model

Description

The G2RL-24 DC18 is a general-purpose non-latching power relay from Omron.

  • Manufacturer: Omron
  • Mounting Type: Through-Hole
  • Case/Package: DIP
  • Number of Pins: 8
  • Coil Voltage: 18VDC
  • Coil Resistance: 811 Ω
  • Coil Current: 22.2 mA
  • Contact Material: Cadmium Silver
  • Contact Current Rating: 8A
  • Operate Time: 15ms
  • Release Time: 5ms
  • Maximum Voltage Rating: 440VAC and 300VDC
  • Maximum Current Rating: 8A
  • Throw Configuration: DPDT
  • RoHS Compliant: Yes
