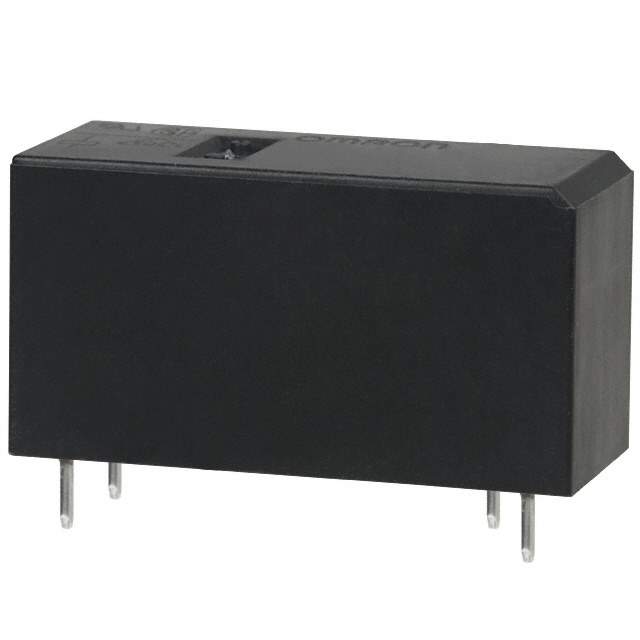

G2RL-1A-DC24 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1A-DC24

Part No G2RL-1A-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description General Purpose Power PCB Relay SPST-NO 12A 20VDC 952Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Coil Current 16.7 mA
Coil Power 400 mW
Coil Resistance 1.44 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 12 A
Contact Material Cadmium, Silver, Tin
Current Rating 12 A
Depth 12.7 mm
Height 15.7 mm
Lead Free Yes
Length 29 mm
Max Current Rating 12 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 440 V
Max Voltage Rating (DC) 300 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 1
Number of Pins 4
Operate Time 15 ms
Power Consumption 400 mW
Power Rating 400 mW
Radiation Hardening No
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Switching Current 12 A
Termination PC Pin, Pin
Throw Configuration SPST
Voltage Rating (AC) 440 V
Weight 12 g
Width 12.7 mm
Win Source Part Number 1068320-G2RL-1A-DC24
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G2RL-1A-DC24 CAD Model

Description

The supply and demand status of this product is in shortage. This power relay is designed to meet the highest quality standards and is suitable for a wide range of applications.

  • Product: The Omron G2RL-1A-DC24 is a reliable and efficient electronic component that is ideal for use in electronic devices that require a high switching current.
