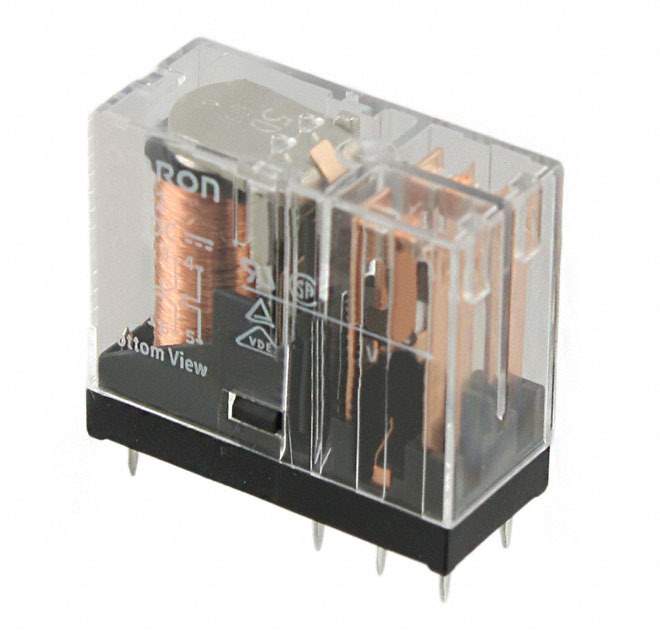

The G2R series DPDT (2 Form C) non-latching general purpose power relay is designed to switch high current loads up to 5 A.

• Switching Voltage: It has a switching voltage of 380VAC and 125VDC
• Maximum Coil Voltage: with a maximum coil voltage of 220VAC.
• Resistance and Current: The relay operates on a coil resistance of 25 kOhms and 4.1 mA coil current.
• Timing: The operate time is 15 ms and release time is 10 ms.
• Features: The G2R series relay is sealed with flux protection and can operate in a temperature range of -40°C to 70°C.
• Mounting: It is mounted through hole and has a PC pin termination style.
• Package: The package contains 100 relays and is available in tray packaging.
• Cross-Reference: The G2R series relay is cross-referenced with G2R-24-AC220, G2R-2-SN AC240(S), 1393258-4, 8768660000, 8768680000G2R-2 AC220, G2R-2AC220, G2R2 AC220, and G2R2AC220.
