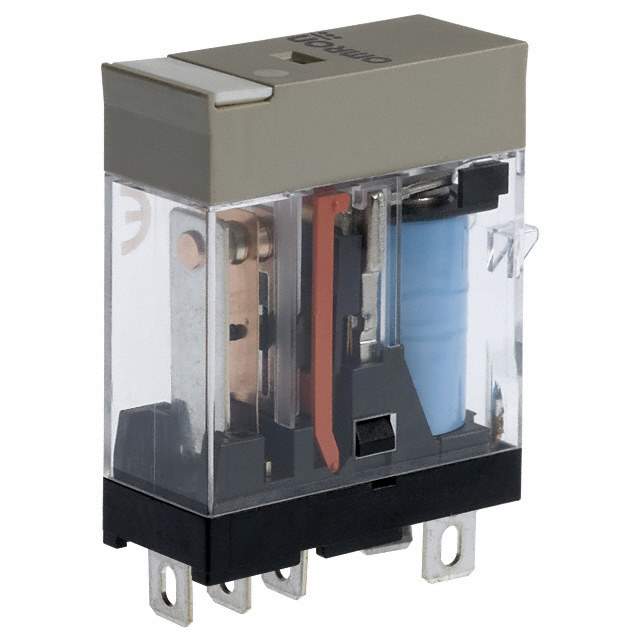

G2R-1-S DC12(S) Real Image
Same model may have multiple batches, images only for reference.

G2R-1-S DC12(S)

Part No G2R-1-S DC12(S)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Socketable
Datasheet
G2R-1-S DC12(S) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series G2RS
Package Bulk
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 440VAC, 125VDC - Max
Coil Current 43.2 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.8 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 278 Ohms
Base Product Number G2R
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names Z1632,G2R1SDC12S,G2R-1-S-DC12S
Standard Package 100
Win Source Part Number 1060137-G2R-1-S DC12(S)
Ultra Librarian 3D Model Ultra Librarian G2R-1-S DC12(S) CAD Model

Description

The G2R-1-S DC12(S) is a power relay manufactured by Omron Automation and Safety.

  • Series: It is a part of the G2RS series and has a plug-in, quick connect - 0.187" (4.7mm) termination style.
  • Package: The product has a standard package of 100 and operates in a temperature range of -40°C to 70°C.
  • Type: The relay type is general purpose and the contact rating (current) is 10 A.
