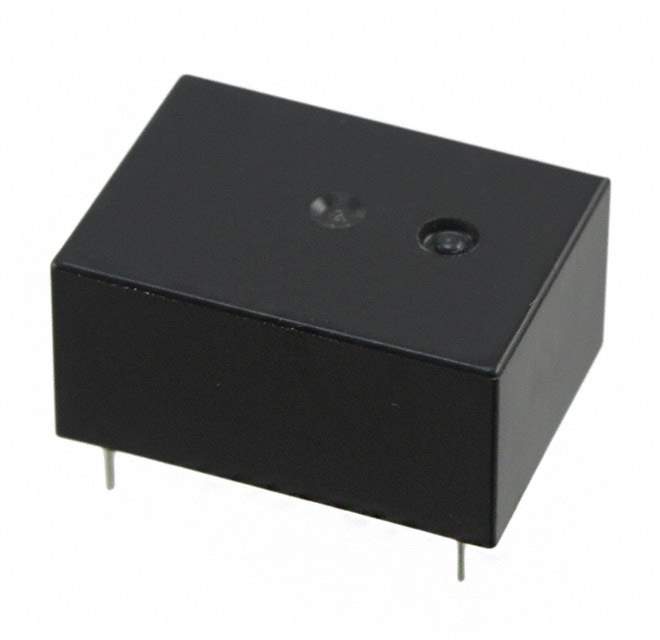

JVN1A-48V-F Real Image1 JVN1A-48V-F Real Image2
Same model may have multiple batches, images only for reference.
JVN1A-48V-F Real Image1 JVN1A-48V-F Real Image2
JVN1A-48V-F Real Image1 JVN1A-48V-F Real Image2
Same model may have multiple batches, images only for reference.

JVN1A-48V-F

Part No JVN1A-48V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 48V  /  General Purpose Relay SPST-NO (1 Form A) 48VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JV-N
Package Bulk
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 4.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 36 VDC
Must Release Voltage 2.4 VDC
Operate Time 12 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 11.52 kOhms
Base Product Number JVN1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Standard Package 100
Win Source Part Number 1010375-JVN1A-48V-F
Ultra Librarian 3D Model Ultra Librarian JVN1A-48V-F CAD Model

Description

The JV-N series power relay by Panasonic Electric Works is a general-purpose component that comes in a bulk package.

  • Contact Rating: 16A
  • Switching Voltage: 277VAC or 30VDC (Max)
  • Package/Case: Through-Hole PC Pin
  • Operating Temperature: -40°C to 70°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.41.0050
