Same model may have multiple batches, images only for reference.

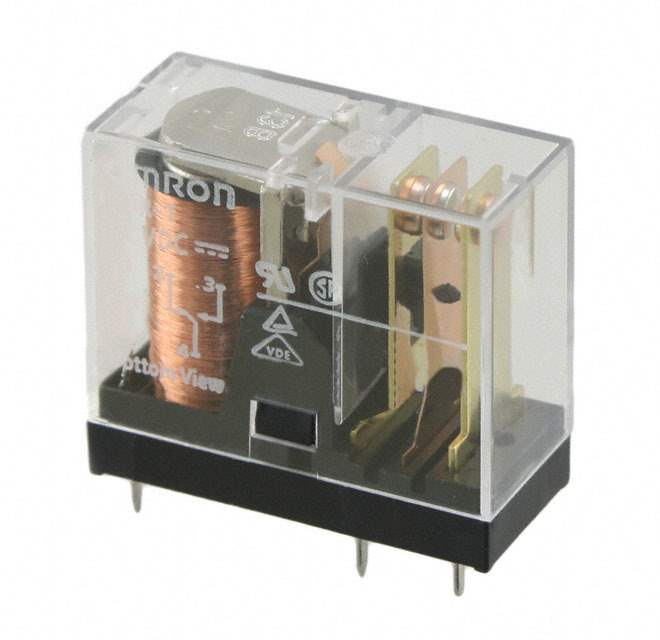

G2R-1-E-DC24 Real Image
Same model may have multiple batches, images only for reference.

G2R-1-E-DC24

Part No G2R-1-E-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V
Datasheet
G2R-1-E-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 21.8mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 380VAC, 125VDC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 3.6 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 1.1 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 067598-G2R-1-E-DC24
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G2R-1-E-DC24 CAD Model

Description

The G2R-1-E-DC24 is a general-purpose relay manufactured by Omron Electronics Inc-EMC Div. It has a sealed flux protection feature that ensures reliable operation in harsh environments.

  • Contact Form: SPDT (1 Form C)
  • Mounting Type: Through Hole
  • Coil Voltage: 24VDC
  • Switching Voltage: 380VAC and 125VDC
  • Supply and Demand Status: Limited

This relay is a reliable and efficient solution for various applications.
