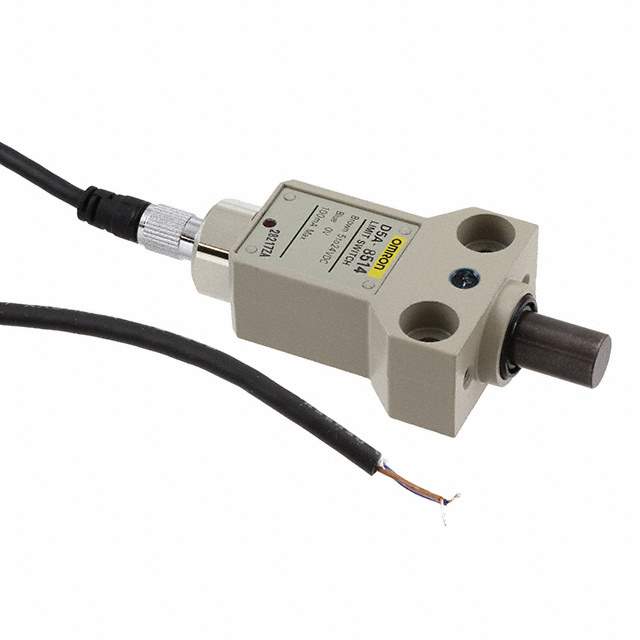

D5A-8514 Real Image
Same model may have multiple batches, images only for reference.

D5A-8514

Part No D5A-8514
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION PNP / Switch Transistor Output, PNP Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Automation and Safety
Series D5A
Package Bulk
Circuit Transistor Output, PNP
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Cable with Connector
Ingress Protection IP67 - Dust Tight, Waterproof
Features Cable Length 3m
Operating Force 400gf
Pretravel 0.040" (1.0mm)
Differential Travel 0.0002" (0.005mm)
Overtravel 0.197" (5.0mm)
Temperature Range - Operating -20°C ~ 75°C
Operating Position 0.825" (21.0mm)
Electrical Life 1,000,000 Cycles
Mechanical Life 10,000,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names Z7359,D5A8514,D5A-8514-ND
Standard Package 1
Win Source Part Number 1042338-D5A-8514
Ultra Librarian 3D Model Ultra Librarian D5A-8514 CAD Model

Description

The Omron 1042338-D5A-8514 is a limit switch that belongs to the D5A series.

  • Series: D5A
  • Win Source Part Number: 1042338
  • Standard Package: Bulk
  • Circuit: Transistor Output, PNP
  • Actuator Type: Round (Pin Plunger)
  • Electrical Life: 1,000,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 400gf
  • Pretravel: 0.040" (1.0mm)
  • Differential Travel: 0.0002" (0.005mm)
  • Overtravel: 0.197" (5.0mm)
  • Operating Position: 0.825" (21.0mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -20°C to 75°C
