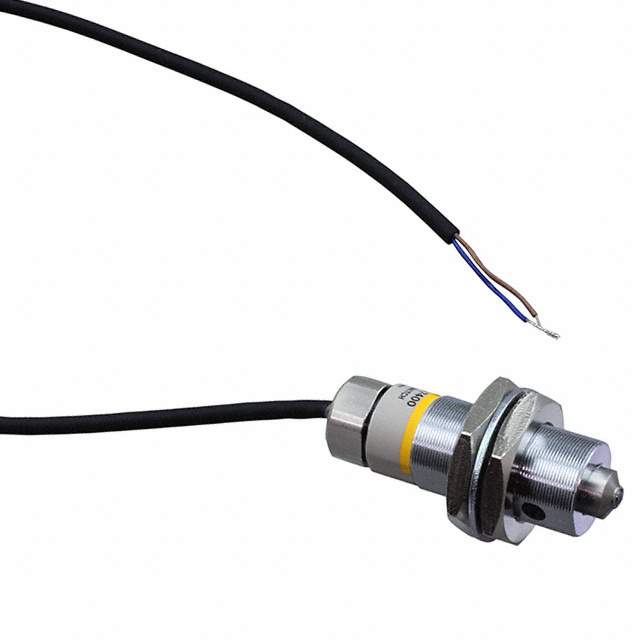

D5A-7400 Real Image
Same model may have multiple batches, images only for reference.

D5A-7400

Part No D5A-7400
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NC 10MA 24V / Switch SPST-NC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Automation and Safety
Series D5A
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 10mA (AC/DC)
Voltage Rating - AC 24 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Panel Mount
Termination Style Cable Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features Cable Length 1m
Operating Force 250gf
Pretravel 0.040" (1.0mm)
Differential Travel 0.0002" (0.005mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -20°C ~ 75°C
Operating Position 0.173" (4.4mm)
Electrical Life 1,000,000 Cycles
Mechanical Life 10,000,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names D5A-7400-ND,D5A7400,Z9068
Standard Package 1
Win Source Part Number 1042292-D5A-7400
Ultra Librarian 3D Model Ultra Librarian D5A-7400 CAD Model

Description

The D5A-7400 limit switch is a single-pole single-throw normally closed (SPST-NC) switch with a round (pin plunger) actuator.

  • Circuit: SPST-NC
  • Actuator: Round (Pin Plunger)
  • Cable Length: 1m
  • Mounting: Panel Mounting
  • Ingress Protection: IP67 (Dust-Tight and Waterproof)
  • Voltage Rating: 24VAC and 12VDC
  • Current Rating: 10mA (AC/DC)
  • Operating Force: 250gf
  • Electrical Life: 1,000,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Temperature Range: -20°C to 75°C
  • Alternative Parts: Available
