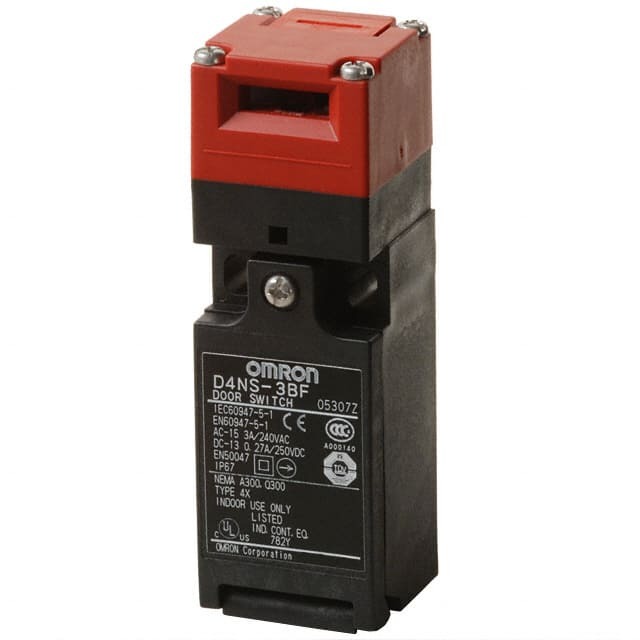

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Interlock Switches
Mfr Omron
Series D4NS
Package Bulk
Product Status Obsolete
Type Non-Locking
Circuit DPST-NC
Current Rating (Amps) 3A (AC)
Voltage Rating 240VAC
Holding Force 6kgf
Actuator Type Panel Disconnect
Termination Style Screw Terminal
Conduit Thread Size 1/2" NPT
Temperature Range - Operating -30°C ~ 70°C
Ingress Protection IP67 - Dust Tight, Waterproof
Approval Agency CCC, CE, cULus, TUV
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 868040-D4NS-3BF
Ultra Librarian 3D Model Ultra Librarian D4NS-3BF CAD Model

Description

The Omron 868040-D4NS-3BF is a non-locking interlock switch from the D4NS series. It is designed for use in switch applications and has a voltage rating of 240VAC. Omron

  • Series: D4NS
  • Type: Interlock Switch, Non-Locking
  • Application: Switch
  • Voltage Rating: 240VAC
  • Circuit Configuration: DPST-NC
  • Actuator Type: Panel Disconnect
  • Ingress Protection: IP67
  • Termination Style: Screw Terminal
  • Package: Bulk
  • Operating Temperature: -30°C to 70°C
  • Product Status: Obsolete
  • Certifications: CCC, CE, cULus, TUV
  • Holding Force: 6kgf
  • Conduit Thread Size: 1/2" NPT
