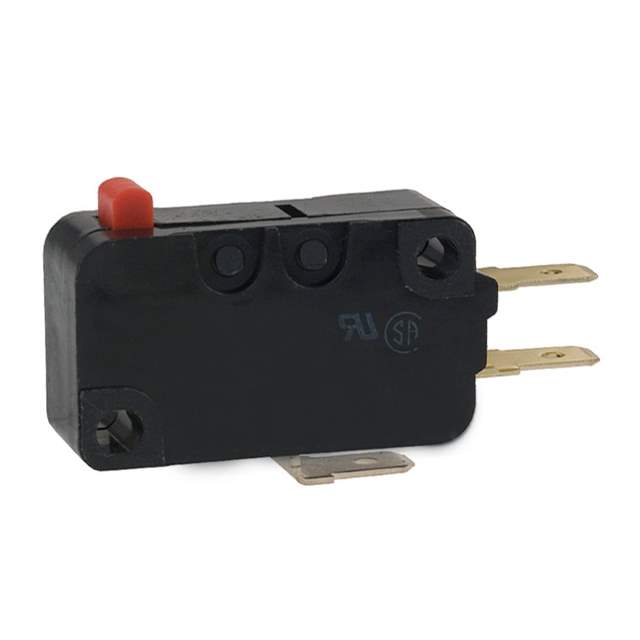

D3V-16-1C24-K Real Image
Same model may have multiple batches, images only for reference.

D3V-16-1C24-K

Part No D3V-16-1C24-K
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 16A 250V / Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 16A 250VAC 250VDC 372.85VA 0.98N Screw Mount
Datasheet
D3V-16-1C24-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Series D3V
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 16A (AC), 10A (DC)
Voltage Rating - AC 250V
Voltage Rating - DC 30V
Actuator Type Round (Pin Plunger)
Mounting Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Operating Force, Torque 100gf
Release Force 15gf
Pretravel 0.047" (1.2mm)
Differential Travel 0.016" (0.4mm)
Overtravel 0.040" (1.0mm)
Operating Position 0.579" (14.7mm)
Mechanical Life 10,000,000 Cycles
Electrical Life 100,000 Cycles
Operating Temperature Range -25°C ~ 105°C
Win Source Part Number 772311-D3V-16-1C24-K
Popularity Medium
Supply and Demand Status Limited
Family Name D3V
Introduction Date May 20, 2001
ECCN EAR99
Country of Origin Indonesia
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian D3V-16-1C24-K CAD Model

Description

The Omron D3V-16-1C24-K is a chassis mount circuit SPDT switch from Omron.

  • Win Source Part Number: 772311-D3V-16-1C24-K
  • Manufacturer Homepage: www.omron.com/index3.html
  • Switch Type: SPDT
  • Voltage Rating: 250V AC, 30V DC
  • Supply and Demand: Limited
  • Popularity: Medium
