Same model may have multiple batches, images only for reference.

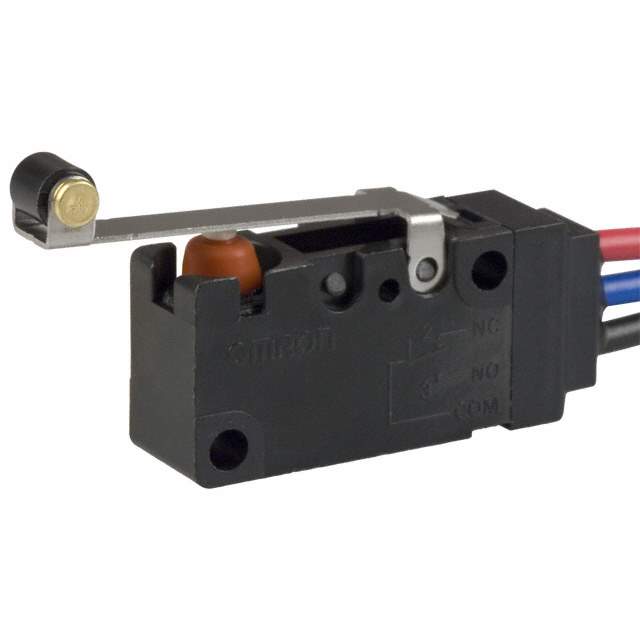

D2VW-5L2-2MS-0 Real Image
Same model may have multiple batches, images only for reference.

D2VW-5L2-2MS-0

Part No D2VW-5L2-2MS-0
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description MINIATURE BASIC SWITCH  /  Switch SPST-NC Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2VW
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 120gf
Release Force 15gf
Pretravel 0.157" (4.0mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.815" (20.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number D2VW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2VW5L22MS0
Standard Package 10
Win Source Part Number 1018744-D2VW-5L2-2MS-0
Ultra Librarian 3D Model Ultra Librarian D2VW-5L2-2MS-0 CAD Model

Description

The D2VW series limit switch from Omron Electronics Inc-EMC Div is a SPST-NC circuit switch with an actuator type of lever or roller.

  • Circuit: SPST-NC
  • Actuator Type: Lever or Roller
  • Voltage Rating: 125V AC, 30V DC
  • Current Rating: 5A (AC/DC)
  • Switch Function: On-Mom
  • Electrical Life: 100,000 Cycles
  • Mechanical Life: 10,000,000 Cycles
  • Operating Force: 120gf
  • Release Force: 15gf
  • Pretravel: 0.157" (4.0mm)
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.062" (1.6mm)
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Package: Bulk
  • Standard Package: 10
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 85°C
