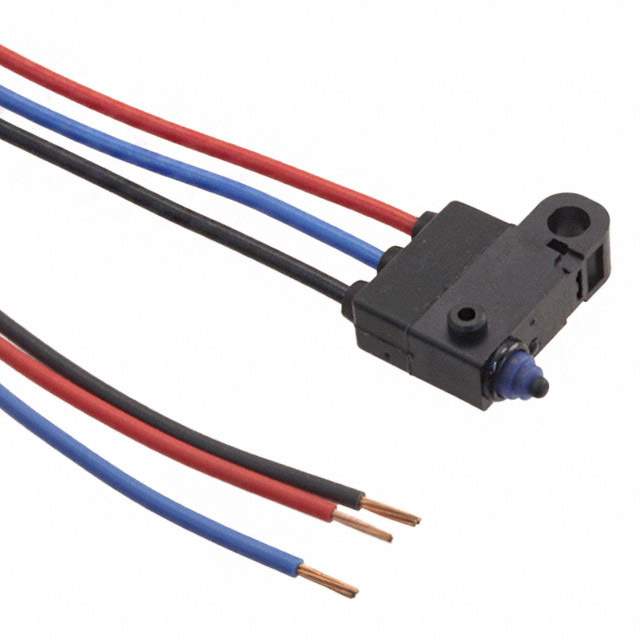

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating 100mA (AC), 2A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 12V
Actuator Type Round (Pin Plunger)
Mounting Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force, Torque 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Operating Position 0.250" (6.4mm)
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 1032158-D2HW-C201M
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian D2HW-C201M CAD Model

Description

The 1032158-D2HW-C201M is a SPDT On-Mom round pin plunger switch from Omron Electronics Inc-EMC Div.

  • Mounting: Chassis mounted
  • Current Rating: 100mA (AC) and 2A (DC)
  • Voltage Rating: 125V (AC) and 12V (DC)
  • Ingress Protection: IP67
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 76gf
  • Release Force: 10gf
