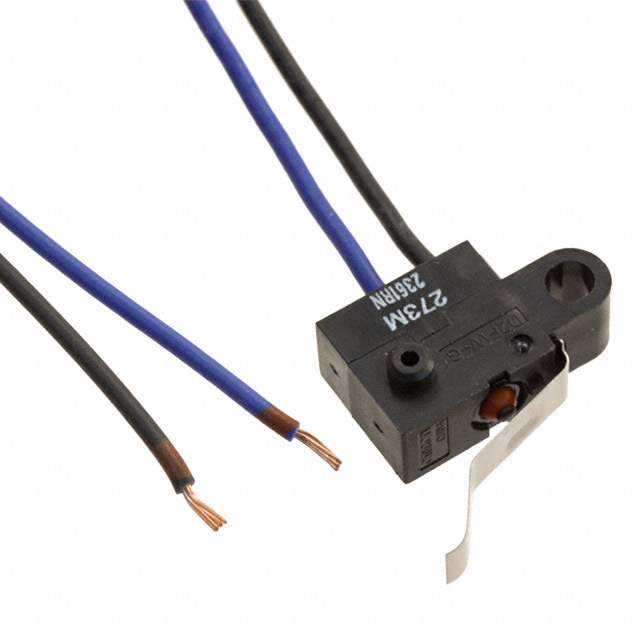

D2FW-G273M Real Image
Same model may have multiple batches, images only for reference.

D2FW-G273M

Part No D2FW-G273M
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 1A 30V / Switch SPST-NO Chassis Mount
Datasheet
D2FW-G273M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1A (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Leaf
Mounting Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 250gf
Release Force 30gf
Differential Travel 0.040" (1.0mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.453" (11.5mm)
Electrical Life 30,000 Cycles
Mechanical Life 300,000 Cycles
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number D2FW0047A,D2FWG273M,D2FWG273M1,SW512
Standard Package 20
Win Source Part Number 1323770-D2FW-G273M
Ultra Librarian 3D Model Ultra Librarian D2FW-G273M CAD Model

Description

The D2FW-G273M from Omron Electronics Inc-EMC Div is a limit switch that comes in a tray package.

  • Package: Tray
  • Termination: Wire leads
  • Ingress Protection: IP67 (dust tight and waterproof)
  • Voltage Rating (DC): 30 V
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Lever, leaf
  • Electrical Life: 30,000 cycles
  • Operating Force: 250gf
  • Mechanical Life: 300,000 cycles
  • Release Force: 30gf
  • Differential Travel: 0.040" (1.0mm)
  • Overtravel: 0.040" (1.0mm)
  • Operating Position: 0.453" (11.5mm)
  • Operating Temperature: -40°C ~ 85°C
  • Status: Obsolete
  • MSL: No moisture sensitivity level (MSL)
