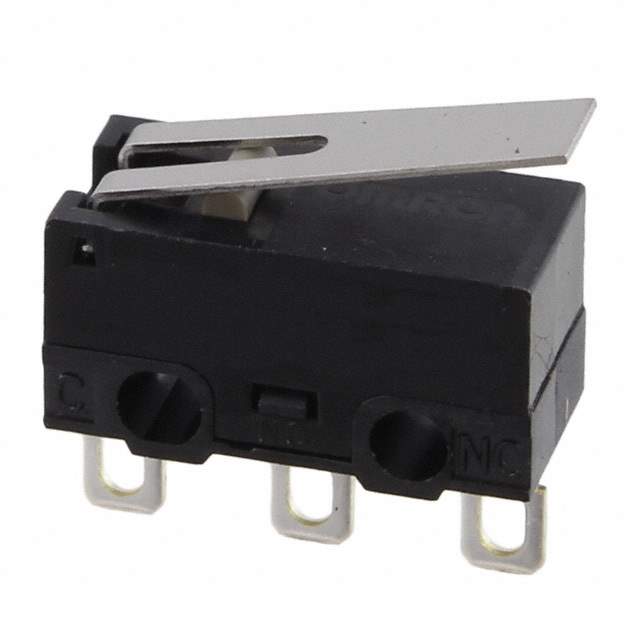

D2F-L-D3 Real Image
Same model may have multiple batches, images only for reference.

D2F-L-D3

Part No D2F-L-D3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V  /  Switch SPDT Chassis Mount
Datasheet
D2F-L-D3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2F
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 80gf
Release Force 5.099gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -25°C ~ 65°C
Operating Position 0.268" (6.8mm)
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Other Names D2FLD3,-D2F-L
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233634-D2F-L-D3
Ultra Librarian 3D Model Ultra Librarian D2F-L-D3 CAD Model

Description

The Omron Electronics Inc-EMC Div D2F-L-D3 is a limit switch from the D2F series.

  • Series: D2F
  • Package: Bulk
  • Mounting Type: Chassis mount
  • Switch Function: On-Mom
  • Circuit: SPDT
  • Actuator Type: Lever, straight
  • Operating Force: 80gf
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Pretravel: Not specified
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.022" (0.55mm)
  • Operating Position: 0.268" (6.8mm)
  • Temperature Range - Operating: -25°C ~ 65°C
  • Current Rating (Amps): 3A (AC), 2A (DC)
  • Supply and Demand Status: Balanced
