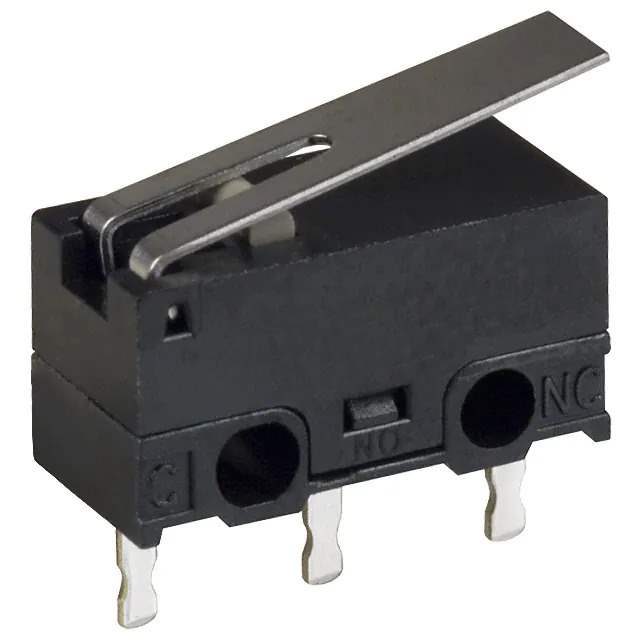

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 25gf
Release Force 2.039gf
Operating Position 0.268" (6.8mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 583455-D2F-FL
Ultra Librarian 3D Model Ultra Librarian D2F-FL CAD Model

Description

The D2F-FL is a lever, straight actuator type limit switch manufactured by Omron.

  • Series: D2F
  • Category: Limit Switches
  • Circuit Configuration: SPDT (Single Pole, Double Throw)
  • Package: Bulk
  • Standard Package: 1000 pieces
  • Voltage Rating: 125V AC and 30V DC
  • Operating Force: 25gf
  • Mechanical Life: 1,000,000 cycles
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -40°C to 85°C
