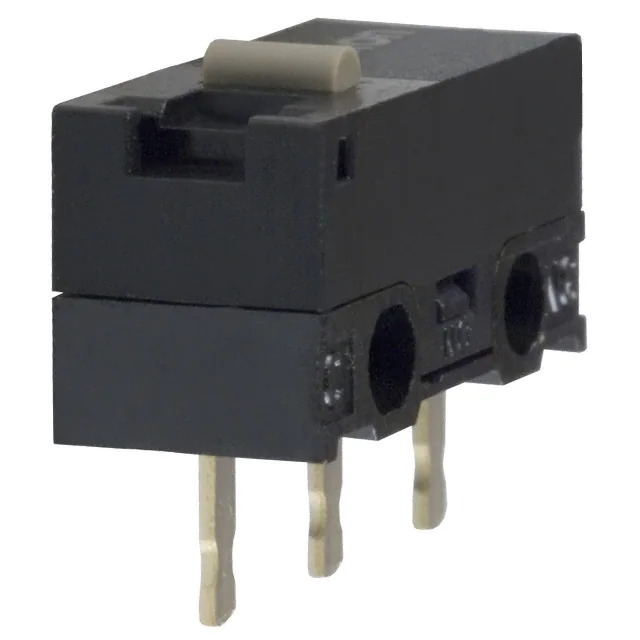

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Features -
Operating Force 75gf
Release Force 5.099gf
Operating Position 0.217" (5.5mm)
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.13mm)
Overtravel 0.010" (0.25mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1355682-D2F-01F-T
Ultra Librarian 3D Model Ultra Librarian D2F-01F-T CAD Model

Description

The D2F-01F-T is a SPDT (Single Pole Double Throw) limit switch from Omron Electronics Inc-EMC Div. It is a round pin plunger type switch with a voltage rating of 30V DC.

  • Voltage Rating: 30V DC
  • Current Rating: 100mA DC
  • Operating Force: 75gf
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Operating Position: 0.217 inches (5.5mm)
  • Pretravel: 0.020 inches (0.5mm)
  • Release Force: 5.099gf
  • Overtravel: 0.010 inches (0.25mm)
  • Differential Travel: 0.005 inches (0.13mm)
  • IP Rating: IP40
  • Mounting Type: Through-Hole
  • Termination: PC Pin
