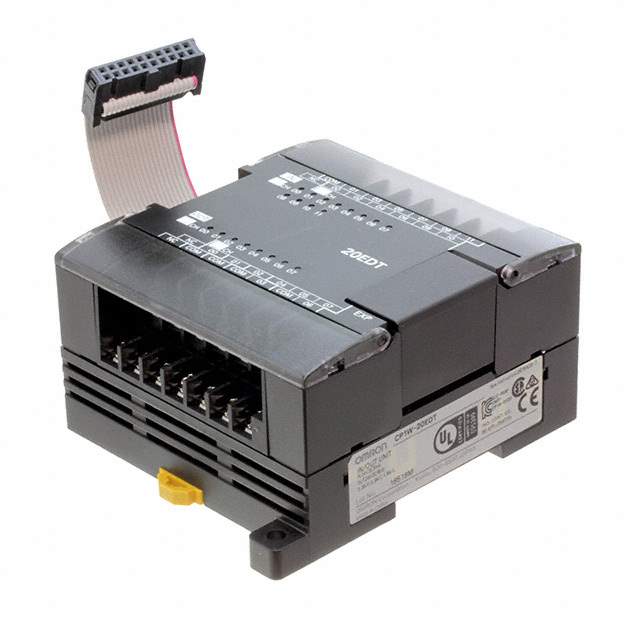

CP1W-20EDT Real Image
Same model may have multiple batches, images only for reference.

CP1W-20EDT

Part No CP1W-20EDT
Manufacturer Omron
Catalog Controllers - PLC Modules
Description I/O MODULE 12 DIGITAL 8 SOLID ST / Input, Output (I/O) Module DIN Rail
Datasheet
CP1W-20EDT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Controllers - PLC Modules
Manufacturer Omron Automation and Safety
Packaging Bulk
Type Input, Output (I/O) Module
For Use With/Related Products CJ, CP1 Series
Number of Inputs and Type 12 - Digital
Number of Outputs and Type 8 - Solid State
Mounting DIN Rail
Termination Style Screw Terminal
Approval Agency CE, CSA, Lloyd, NK, UL
Base Product Number CP1W-20
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.1000
Other Part Number CP1W20EDT,CP1W-20EDT-ND,12010-2001,Z8938
Standard Package 1
Win Source Part Number 1335074-CP1W-20EDT
Ultra Librarian 3D Model Ultra Librarian CP1W-20EDT CAD Model

Description

The Omron Automation and Safety CP1W-20EDT is an input/output (I/O) module for CJ and CP1 series controllers.

  • Series: CJ and CP1 series
  • Number of Inputs: 12
  • Input Type: Digital
  • Number of Outputs: 8
  • Output Type: Solid-State
  • Mounting Type: DIN Rail
  • Termination Style: Screw Terminal
  • Approvals: CE, CSA, Lloyd, NK, and UL
  • RoHS Compliant: Yes
  • Base Product Number: CP1W-20
