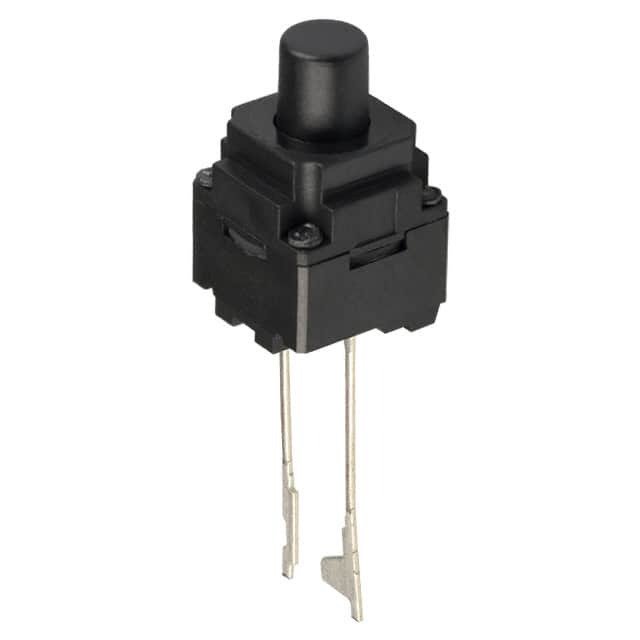

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Omron Electronics Inc-EMC Div
Series B3WN
Package Cut Tape (CT),Tape & Box (TB)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 13.00mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 8.00mm x 8.00mm
Illumination Non-Illuminated
Operating Force 200gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Sealed - Fully
Temperature Range - Operating -25°C ~ 85°C
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Base Product Number B3WN
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Other Names B3WN6002,B3WN6002S,B3WN-6002(S),SW425CT,SW425TB,SW425TR,Q1474138A
Standard Package 1,000
Win Source Part Number 1104712-B3WN-6002
Ultra Librarian 3D Model Ultra Librarian B3WN-6002 CAD Model

Description

The Omron Electronics Inc-EMC Div B3WN is a SPST-NO tactile switch with Off-Mom switch function.

  • Switch Function: Off-Mom
  • Mounting: Through-Hole
  • Termination Style: PC Pin
  • Actuator Type: Standard
  • Actuation: Top
  • Actuator Travel: 0.30mm
  • Operating Force: 200gf
  • Mechanical Life: 100,000 cycles
  • Sealed: Fully
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Outline: 8.00mm x 8.00mm
  • Actuator Height off PCB, Vertical: 13.00mm
  • Illumination: Non-Illuminated
  • Illumination Voltage (Nominal): Unspecified
  • Temperature Range: -25°C to 85°C
  • REACH: Unaffected
