Same model may have multiple batches, images only for reference.

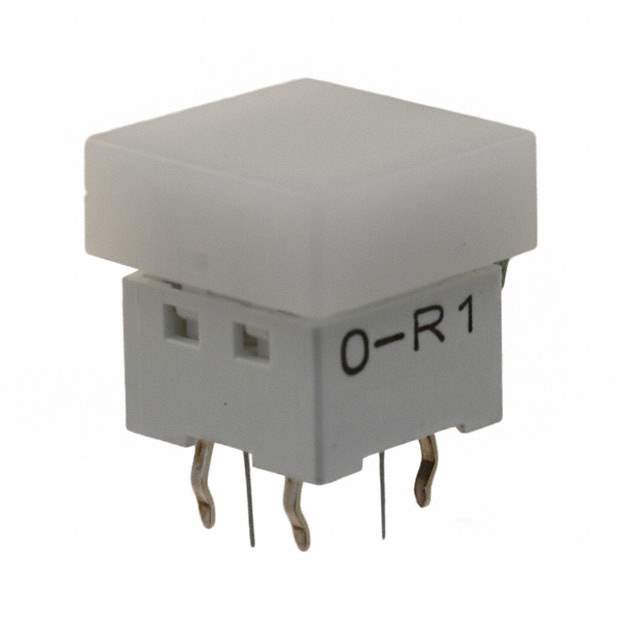

B3W-9012-RB2N Real Image
Same model may have multiple batches, images only for reference.

B3W-9012-RB2N

Part No B3W-9012-RB2N
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V  /  Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Omron Electronics Inc-EMC Div
Series B3W-9
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Square Button
Mounting Type Through Hole
Actuator Height off PCB, Vertical 10.20mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Illuminated
Illumination Type, Color LED, Red/Blue
Illumination Voltage (Nominal) 1.8, 3.7 VDC
Operating Force 230gf
Features Sealed - Fully
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 300,000 Cycles
Base Product Number B3W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names B3W9012RB2N,B3W-9012-RB2N-ND,Z12941
Standard Package 300
Win Source Part Number 1104482-B3W-9012-RB2N
Ultra Librarian 3D Model Ultra Librarian B3W-9012-RB2N CAD Model

Description

The B3W-9012-RB2N is a tactile switch manufactured by Omron Electronics Inc-EMC Div.

  • Feature: Sealed Fully
  • Circuit: SPST-NO
  • Actuator Type: Square Button
  • Switch Travel: 0.25mm
  • Operating Force: 230gf
  • Mechanical Life: 300,000 cycles
  • Illumination Voltage (Nominal): 1.8, 3.7 VDC
  • Illumination Type and Color: Red/Blue LED
