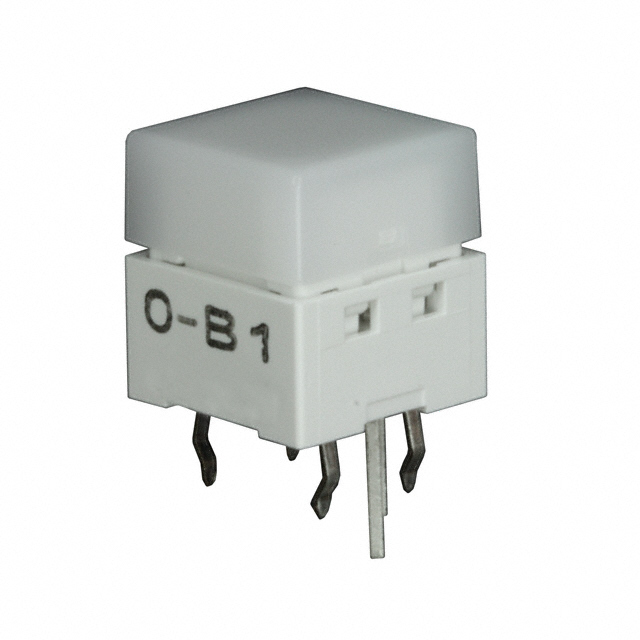

Same model may have multiple batches, images only for reference.

B3W-9000-Y2N

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B3W-9000-Y2N
Manufacturer	Omron
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Square Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	10.20mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	10.00mm x 10.00mm
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	2.4 VDC
Operating Force	160gf
Features	Sealed - Fully
Temperature Range - Operating	-25°C ~ 70°C
Package	Bulk
Supply and Demand Status	Shortage
Win Source Part Number	1553529-B3W-9000-Y2N
Ultra Librarian 3D Model	Ultra Librarian B3W-9000-Y2N CAD Model
