Same model may have multiple batches, images only for reference.

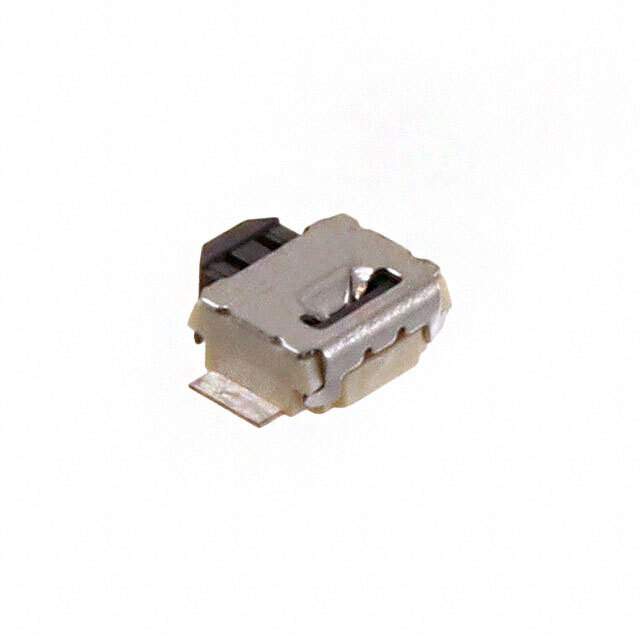

B3U-3000P-B Real Image
Same model may have multiple batches, images only for reference.

B3U-3000P-B

Part No B3U-3000P-B
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
B3U-3000P-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.50mm
Illumination Non-Illuminated
Operating Force 162gf
Ingress Protection Dust Proof
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 000069-B3U-3000P-B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B3U-3000P-B CAD Model

Description

Description

The B3U-3000P-B tactile switch provides excellent operational reliability and user-friendly interfacing for modern electronics. Its versatile design accommodates a wide range of applications, ensuring smooth integration and optimal performance.

Features and Benefits

  • Slim profile suitable for compact devices
  • Enhanced durability supporting up to 500,000 actuations
  • Consistent tactile feedback for better user experience
  • Corrosion-resistant materials for extended longevity

Applications

  • Wearable Technology
  • Smart Home Devices
  • Portable Electronics
  • Custom Control Panels
